ADW300A Wireless Electricity Meter: Compact size, high accuracy, and rich functionality, suitable for various scenarios in factories, industrial parks, and commercial areas

Abstract

Driven by both the "dual-carbon" strategy and the construction of a new power system, traditional power operation and maintenance models face structural challenges such as lagging data acquisition, slow fault response, and extensive energy consumption management. This paper takes Acrel's ADW300A wireless metering instrument as the research object, systematically analyzing its innovative value in product positioning, technical architecture, functional features, and application scenarios. The research shows that the ADW300A, through the deep integration of high-precision metering, multi-mode wireless communication, and edge computing capabilities, achieves a paradigm shift from "passive operation and maintenance" to "proactive management." The successful application of this instrument in scenarios such as environmental power consumption monitoring, factory energy consumption management, and remote meter reading in chain stores verifies its core pivotal role in building a digital energy management system.

Design Principles

The Acrel ADW300A is clearly positioned within the niche category of "Internet of Things (IoT) energy meters." Compared to traditional DIN rail-mounted energy meters, its design revolves around three core principles: first, wireless communication, eliminating the constraints of RS485 wiring on retrofit projects; second, flexible installation, enabling uninterrupted installation through external current transformers and various power supply methods; and third, expandable functionality, integrating temperature measurement, residual current detection, and switch quantity acquisition capabilities beyond metering.

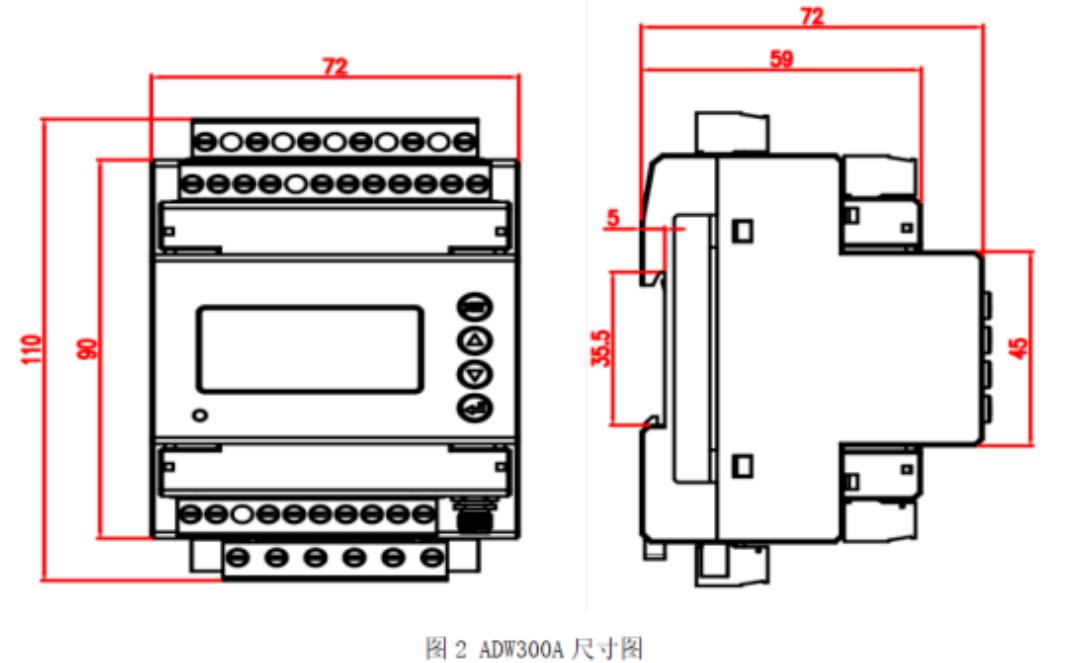

Product Introduction

The Acrel ADW300A is clearly positioned within the niche category of "Internet of Things (IoT) energy meters." Compared to traditional DIN rail-mounted energy meters, its design revolves around three core principles: first, wireless communication, eliminating the constraints of RS485 wiring on retrofit projects; second, flexible installation, enabling uninterrupted installation through external current transformers and various power supply methods; and third, expandable functionality, integrating temperature measurement, residual current detection, and switch quantity acquisition capabilities beyond metering.

15-Minute Energy Freeze

Addressing the core needs of charging pile operation projects for time-of-use billing, energy consumption reconciliation, and energy consumption auditing, the ADW300A has upgraded its historical freeze function, supporting adjustable minute-level freezes from 5 to 60 minutes, with a default adaptation to the industry-standard 15-minute freeze period.

15-Minute Energy Freeze: Accurate and Controllable Charging Pile Billing and Traceability

The ADW300A adds Bluetooth debugging functionality, eliminating the need for on-site maintenance personnel to lay RS485 communication cables or carry professional serial port debugging equipment. They can directly connect to the instrument via a mobile app to perform various parameter configuration operations, including voltage and current ratio configuration, rate period settings, server parameter modification, alarm threshold adjustment, and instrument function calibration.

This simplified debugging method significantly reduces on-site construction and wiring costs for charging pile projects, especially suitable for projects with distributed installations and multi-site layouts, facilitating subsequent maintenance and parameter iteration.

Multi-functional Local Button Integration: One-Click Access

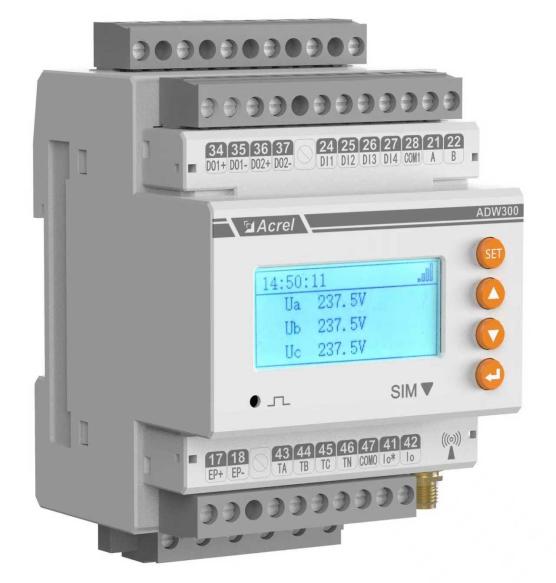

The ADW300A is equipped with a dot-matrix LCD display and integrated function buttons. Commonly used instrument operation functions are deeply integrated into the local button system. Without relying on a communication connection, users can perform various common operations such as three-phase three-wire/four-wire system modification, real-time electrical parameter viewing, rate mode switching, alarm record query, historical freeze data retrieval, and local instrument parameter configuration via buttons.

The Acrel ADW300A continues Acrel's high-standard performance advantages in metering products, providing multi-dimensional electrical safety and metering assurance for charging pile projects:

Compliant and Reliable Metering Accuracy: Active energy accuracy complies with the national standard GB/T 17215.321-2021, with the basic model achieving Class C accuracy and the external transformer model achieving Class B accuracy. It provides complete metering of forward and reverse active energy and four-quadrant reactive energy, ensuring reliable data.

Comprehensive Electrical Monitoring Capabilities: It can measure various electrical parameters such as voltage, current, power, frequency, and power factor in real time. It supports 2nd-63rd harmonic analysis and three-phase unbalance calculation. Optional features include 4-channel temperature measurement, 1-channel residual current monitoring, and 4-channel switch input/2-channel relay output, enabling real-time monitoring of electrical safety in the charging pile circuit.

Multiple Wireless Communication Options: Supports RS485 wired communication and optional 4G, WiFi, LoRa, LoRaWAN, and other wireless communication methods. 4G/WiFi... This model offers an optional power outage reporting function, supporting breakpoint resume and remote debugging to meet the remote centralized operation and maintenance needs of charging pile projects.

It is adaptable to a wide range of operating environments: operating temperature -40℃ to +70℃, stably adaptable to various installation environments such as outdoor charging piles and underground parking garage charging stations.

It is widely used in industrial parks, commercial buildings, data centers, mining enterprises, and other scenarios, offering wireless convenience, precise metering, and comprehensive functions to help users achieve visualized power consumption, intelligent management, and streamlined operation and maintenance.

Summary

The Acrel ADW300A wireless metering instrument is a typical product representing the transition from concept to implementation in the distribution IoT field. This study, through a systematic review of its technical features and an in-depth analysis of its application scenarios, draws the following conclusions:

The ADW300A, through the integration of high-precision metering, multi-mode wireless communication, and edge intelligence, effectively addresses the three major pain points of traditional power operation and maintenance: data lag, passive response, and extensive management. It achieves a paradigm shift from "passive operation and maintenance" to "proactive management."

The successful implementation of this instrument in scenarios such as environmental power consumption monitoring, factory energy management, centralized meter reading in chain stores, and overseas project deployment verifies its broad applicability and engineering feasibility as a "core node in the perception layer" of digital energy management.

The wireless intelligent metering approach represented by the ADW300A aligns with the higher requirements for granular end-point data in the construction of new power systems and the "dual-carbon" strategy. Its synergistic evolution with energy management platforms and AI algorithms will drive the energy management system towards a more intelligent and refined direction.

Looking to the future, with the continued penetration of IoT, edge computing, and AI technologies, wireless metering instruments will no longer be passive "data collectors," but rather proactive "intelligent decision-making nodes."
