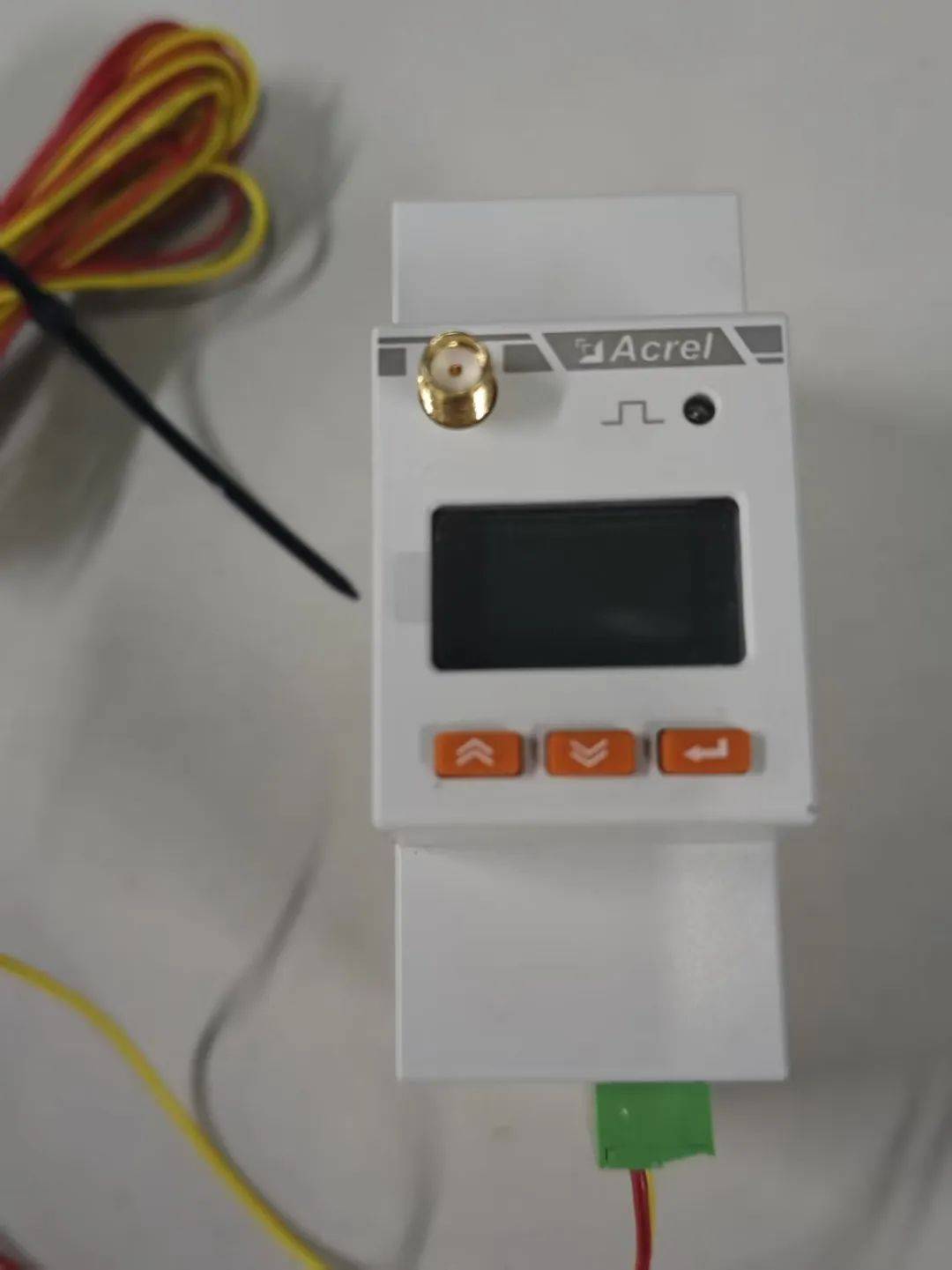

Acrel ADW310 Balcony Photovoltaic Two-Way Metering WIFI Electricity Meter

Abstract: With the continuous growth of global demand for renewable energy, distributed photovoltaic (PV) power generation systems are gradually entering households. Against this backdrop, the Acrel ADW310 balcony PV bidirectional metering WIFI meter has emerged as a key device connecting home PV systems to the smart grid. This article will comprehensively analyze the technical features, application scenarios, installation advantages, and future development trends of this product, providing professional reference for readers interested in home energy management.

Product Overview and Technical Specifications

The Acrel ADW310 is a bidirectional metering smart meter specifically designed for distributed PV systems. Its core function is to accurately measure and record the power generation of the PV system, household electricity consumption, and surplus electricity fed into the grid.

Main Technical Parameters

Voltage Specification: Supports 220V single-phase AC grid access

Current Specification: 5(60)A wide range design, adaptable to photovoltaic systems of different scales

Metering Accuracy: Meets Class 1.0 standard, meeting the State Grid's requirements for distributed energy metering

Communication Method: Built-in WIFI module, supports 2.4GHz band wireless transmission

Operating Environment: Wide temperature range of -25℃ to +55℃, suitable for outdoor installation environment

Protection Rating: IP65 dustproof and waterproof, ensuring the reliability of balcony installation

Core Functional Features

The most significant feature of the ADW310 is its bidirectional metering capability, which can simultaneously record the electrical energy transmitted from the photovoltaic system to the grid and the electrical energy supplied by the grid to the household. This precise energy flow tracking provides a data foundation for photovoltaic power generation benefit analysis. In addition, its built-in WIFI communication module enables real-time data upload, and users can view the power generation status at any time through a mobile APP or cloud platform.

Design Advantages and Technological Innovation

The Acrel ADW310 stands out among similar products due to its many innovative design concepts and user-friendly functional configurations. Compact Structural Design

Optimized Size: Its compact dimensions of 180mm × 110mm × 70mm make it ideal for installation in limited balcony spaces.

Modular Architecture: Separate metering and communication modules facilitate future maintenance and upgrades.

Visual Interface: A high-definition LCD display intuitively shows key data such as power generation, cumulative power generation, and grid feed.

Intelligent Monitoring Technology

The ADW310 is equipped with advanced energy monitoring algorithms that analyze the photovoltaic system's operating status in real time. When power generation efficiency abnormally decreases, the system automatically records the event and issues an alert, helping users promptly identify potential panel contamination or equipment malfunctions. This preventative maintenance function significantly improves the operational reliability of home photovoltaic systems.

Installation, Application, and System Integration

Balcony photovoltaic (PV) systems, as an important form of urban distributed power generation, place special demands on metering equipment. The ADW310 is specifically designed to address these needs through scenario-based solutions.

Typical Installation Scenarios

Apartment Balcony PV: Works with a micro-inverter to monitor the power generation performance of individual or a small number of PV modules.

Villa PV System: Serves as a subsystem metering unit, forming a hierarchical monitoring network with the main meter.

Community Shared PV: Multiple ADW310s form a monitoring network, providing a metering foundation for energy sharing.

System Integration Solution

The ADW310 supports seamless integration with mainstream Home Energy Management Systems (HEMS). Through an open API interface, PV power generation data can be integrated into a smart home platform, enabling联动 control with energy storage systems, smart appliances, and other devices. For example, when PV power generation is excessive, it can automatically start water heaters or electric vehicle charging, maximizing self-consumption.

Data Management and Remote Monitoring

In the era of the Internet of Things (IoT), simple metering functions are no longer sufficient for user needs. The ADW310 provides a complete data solution.

Real-time Monitoring Functions

Power Generation Curve: Data is recorded every 15 minutes to generate a power generation characteristic graph.

Power Generation Revenue Statistics: Photovoltaic revenue is automatically calculated based on local electricity pricing policies.

Anomaly Alarms: Real-time push notifications are sent to user terminals for events such as voltage anomalies and communication interruptions.

Data Analysis Services

Acrel provides ADW310 users with a professional cloud-based data analysis platform capable of in-depth analysis of long-term power generation data. The platform can compare power generation efficiency under different seasons and weather conditions, assess the impact of photovoltaic panel cleanliness on power generation, and even predict future power generation potential. These advanced analytical functions provide a scientific basis for photovoltaic system optimization.

Market Positioning and Competitive Advantages

In the increasingly crowded smart meter market, the ADW310 has established its advantageous position through a differentiation strategy.

Target User Groups

Urban balcony PV installers

Energy enthusiasts sensitive to power generation data

Small-scale commercial and industrial PV users requiring accurate metering

PV system integrators and O&M service providers

Core Competitive Advantages

Compared to similar products, the ADW310's cost-effectiveness is particularly outstanding. It combines the accuracy and reliability of industrial-grade meters with the ease of use and connectivity of consumer-grade products. Market feedback shows that the ADW310's failure rate is lower than the industry average, and its long-term stability has been widely recognized by users.

Future Development Trends and Upgrade Path

As the intelligence level of home energy systems continues to increase, the ADW310 series will continue to evolve to meet the challenges of the energy Internet of Things era.

Technology Evolution Direction

Multi-protocol Support: While maintaining Wi-Fi connectivity, add low-power wide-area network options such as LoRa and Zigbee.

Edge Computing: Enable basic data analysis at the meter level, reducing cloud transmission pressure.

Blockchain Integration: Provide a trusted metering foundation for peer-to-peer energy transactions.

Application Scenarios Expansion

Future versions may add load identification functionality, identifying the operating status of major appliances through electricity consumption characteristic analysis. Furthermore, deep integration with home energy storage systems will also be a development direction, achieving closed-loop optimized management of power generation, storage, and consumption.

Conclusion

The Acrel ADW310 balcony photovoltaic bidirectional metering Wi-Fi meter represents an advanced level of home energy monitoring technology. Its accurate bidirectional metering capability, stable wireless communication performance, and robust outdoor adaptability make it an ideal choice for distributed photovoltaic monitoring. As the proportion of renewable energy in the energy structure continues to increase, such smart metering devices will play an increasingly important role in the energy transition process. For home users or small business users planning to install balcony photovoltaic systems, the ADW310 is not only a metering tool but also a gateway to smart energy management.
