APM510 3-phase Multifunction Power Meter

Name: APM510 3-phase Multifunction Power Meter
Brand: Acrel Co.,Ltd.

Features Specifications Wiring Drawings

Features of APM510 3-phase Multifunction Power Meter

Accuracy
Voltage、current and power: Class 0.2
Active power: Class 0.5; Reactive power: Class 1

Pulse Output
Output mode: photocoupler pulse with open collector;
Pulse constant: 10000imp/kWh (default)

Consumption
Voltage、current: Power consumption: <0.5VA;
Auxiliary power supply: Power consumption ≤15VA

Starting Current: 0.1%

APM510 3-phase Multifunction Power Meter

Installation: Panel mounted

Frequency: Range: 45-65Hz

Relay: 3A/AC250V, 3A/DC30V

Dimension (L*W*H)
Panel size (L×W): 75*75mm
Cut-out size (L×W): 67*67mm

Auxiliary Power Supply
AC/DC 85V～265V or AC/DC 115～415V

APM510 3-phase Multifunction Power Meter

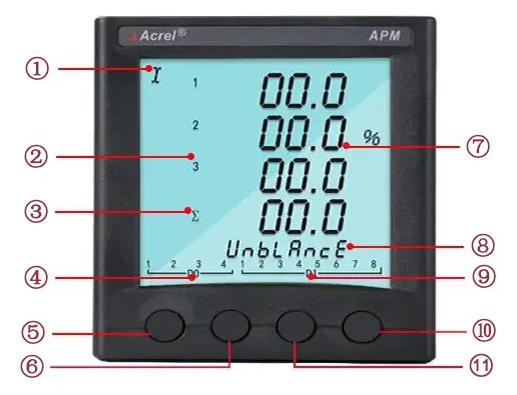

① Type of Parameters

② Load Value

③ Total Power

④ DO Status Indicator

⑤ Menu

⑥ Key Down

⑦ Data Display

⑧ Navbar

⑨ DI Status Indicator

⑩ Enter Button

⑪ Key up

picture	standard	optional	optional group
APM510	Full electric parameter measurement (I, U, kW, kvar, kWh, kvarh, Hz, cos); four-quadrant electric energy, split-phase electric energy, apparent electric energy; real-time demand and maximum demand; electric parameter extreme value and last month Monthly extreme value; voltage and current unbalance; voltage and current phase angle; total harmonic and 2nd-63rd subharmonic; voltage crest factor, telephone waveform factor, current K coefficient, vector diagram, voltage and current waveform; last 128 pcs of DIDO Records; the latest 128 pcs of alarm records; default switch communication 2DI2DO1EP1C	1.K(2DI2DO)	1+2+3+4+5 4+5+6+11+12 4+5+7+11+12 4+5+8+11+12 4+5+9+11+12 4+5+10+11+12
		2.2M（2 channel analog）
		3.2C(The second RS485）
		4.F（Multi tariff）
		5.S(Class 0.2S+fault recording）
		6.WF（WiFi）
		7.LR（Lora）
		8.CE（Ethernet）
		9.4G(4G communication）
		10.NB（NB communication）
		11.T（Temperature measurement）
		12.L（Residual current measurement）
