AMC96L-E4 Multi-Function Three Phase Energy Meter

Name: AMC96L-E4 Multi-Function Three Phase Energy Meter
Brand: Acrel Co.,Ltd.

● Measurement: 3-phase AC kWh, kVarh, I, U, kW, kVar, Hz, cosφ and etc

● Accuracy: 1% (kWh); 0.5% (Active Power)

● Rated Voltage: 400V or 660V AC L-L (direct connect); 100V AC L-L (via PTs)

● Rated Current: 5A AC or 1A AC (via CTs)

● Power Supply: 85~265V AC/DC; 24V or 48V DC

● Communication: RS485 (MODBUS-RTU)

● SOE Funciton: Event&Demand&Extremum Record

● Harmonic Measurement: 2~31^st and total Harmonic

● Analog Output: 4~20mA DC or 1~5V DC

● DI/DO Function: 2/4-channel DI&2-channel DO

● Standard&Certificate: CE Certificates

Features Specifications Drawings Wiring

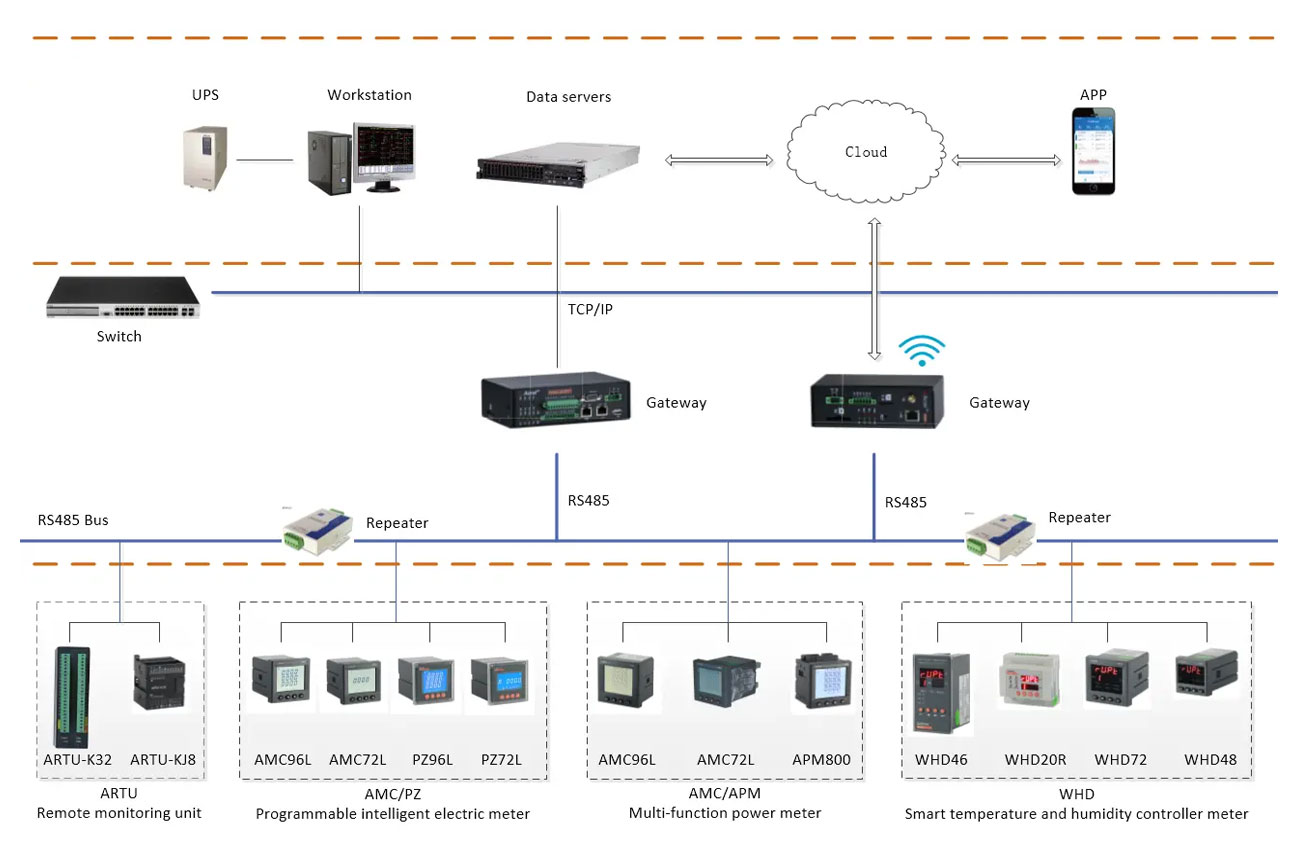

Features of AMC96L-E4 Multi-Function Three Phase Energy Meter

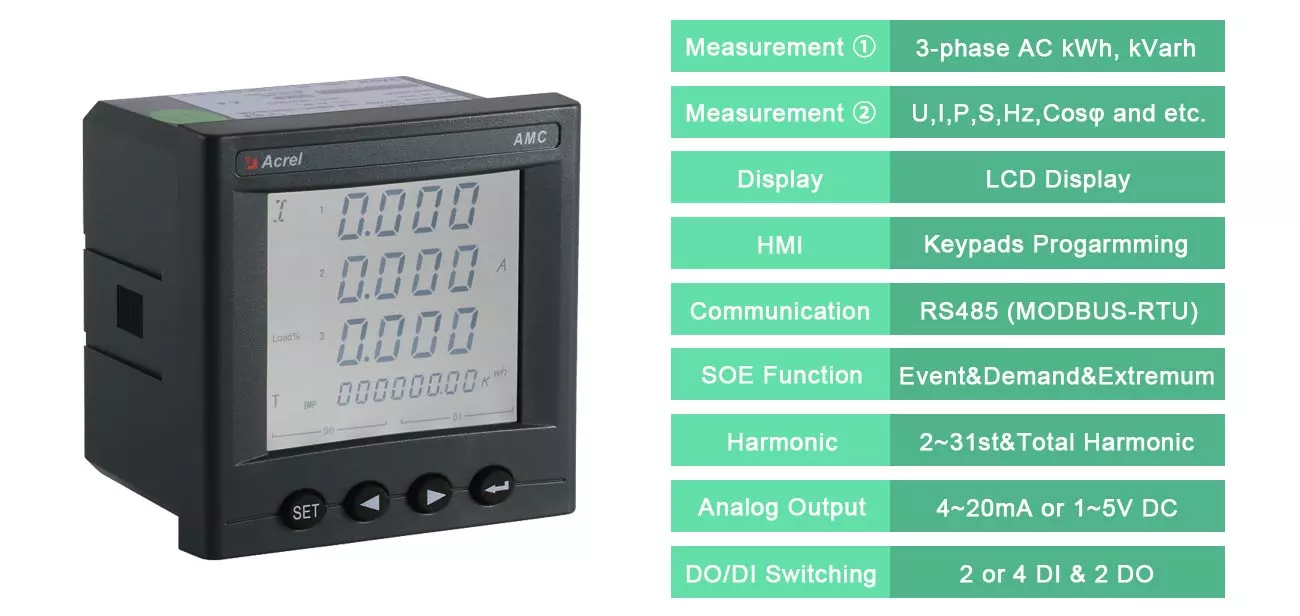

Main Functions

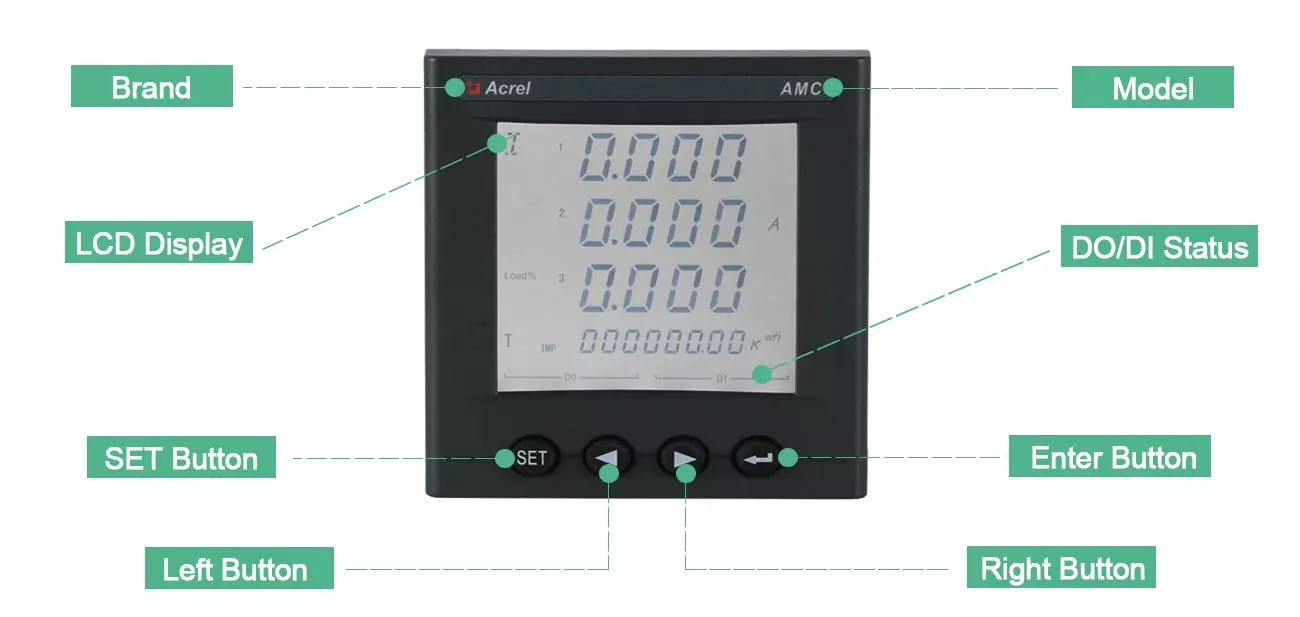

Panel Overview

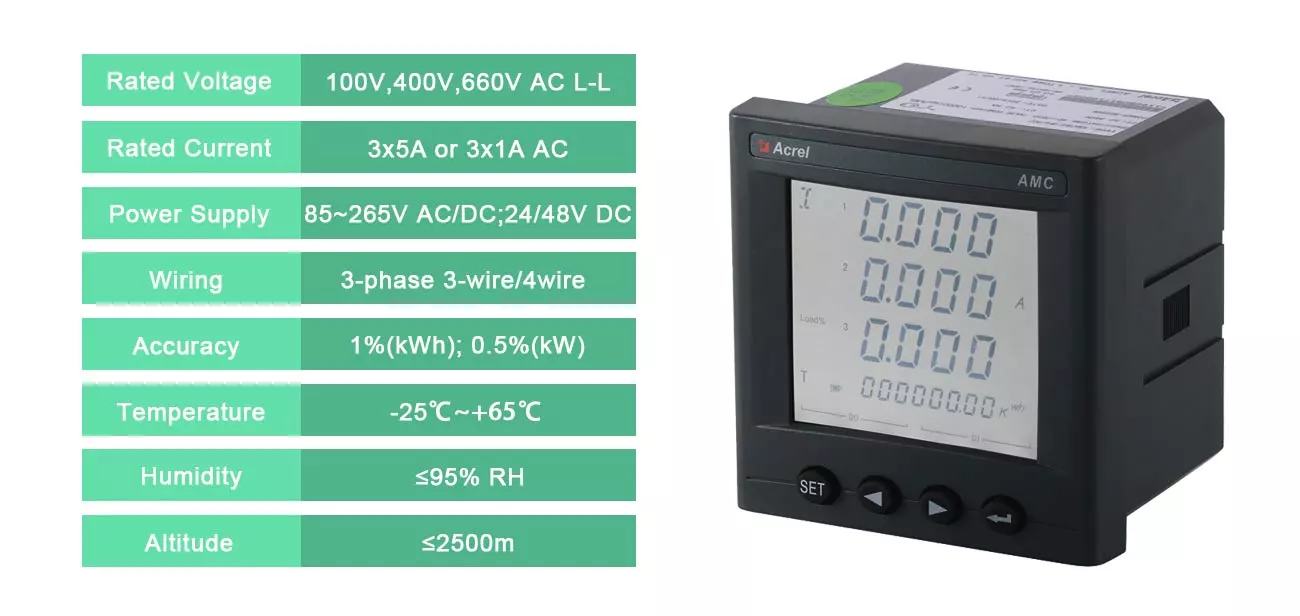

Main Parameters

Specifications of AMC96L-E4 Multi-Function Three Phase Energy Meter

1. Function Overview

Function	Description&Value
Measurement	Three-phase AC kWh, kVarh, Active Power, Reactive Power, Forward&Reverse Power, Current, Voltage, Zero Sequence Voltage, Zero sequence Current, Voltage-phase Angle, Voltage&Current Unbalance, Power Factor,Harmonic, Frequency
Display	LCD display
Communication(Optional)	RS485,Modbus-RTU protocol;(1 start bit,8 data bit,1 stop bit,no parity) Baud Rate 1200~38400 bps etc.
Alarm Output(Optional)	1 channel passive relay,contact capacity 3A/30VDC,3A/250VAC, Used for high,low,unbalance alarm etc.
Analog Output(Optional)	1~5V DC or 4~20mA DC
DI/DO Switching(Optional)	DI (Digital input): 2-channel or 4-channel dry contact digital input with built in power supply DO (Digital output): 2-channel digital output with NO relay contact. Capacity: 3A/30V DC,3A/250V AC

2. Main Parameters

Parameter	Description&Value
Input	Rated Voltage	AC Voltage Input: 400V or 660V AC L-L (via direct connetion); 100V AC L-L (via -/100V AC PTs)
	Rated Current	AC Current Input: 5A AC or 1A AC (via -/5A AC or -/1A AC CTs)
	Overload	Current&Voltage input overload:1.2 times rated value(continuous); 10 times rated value /1 second
	Frequency	45~65Hz
	Power Consumption	Power consumption of each current&voltage input circuit is less than 0.5VA
Measuring Accuracy	Voltage	0.2%
	Current	0.2%
	Active Power	0.5%
	Reactive Power	1.0%
	kWh	0.5%
	kVarh	1.0%
	Frequency	±0.05Hz
	Harmonic	±1%
Power Supply	Voltage Range	85-265V AC/DC; 24V or 48V DC (±20%)
Power Supply	Power Consumption	≤10VA
Insulation resistance		≥ 100MΩ
Power frequency withstand voltage		Between Power supply//Switching Output// Current Input//voltage Input and Transmitting// Communication //Pulse Output//switching input AC 2 kV 1min; Between Power supply、switching output、Current Input、voltage Input AC 2 kV 1min; Between Transmitting、Communication、Pulse Output、switching input AC 1kV 1 min;

3. Environment

Condition	Description&Value
Temperature	Operation: -25℃～+65℃; Storage: -40°C ~+80°C
Humidity	≤95%RH,no condensation,without corrosive gas
Altitude	≤ 2500m

Dimension&Packaging

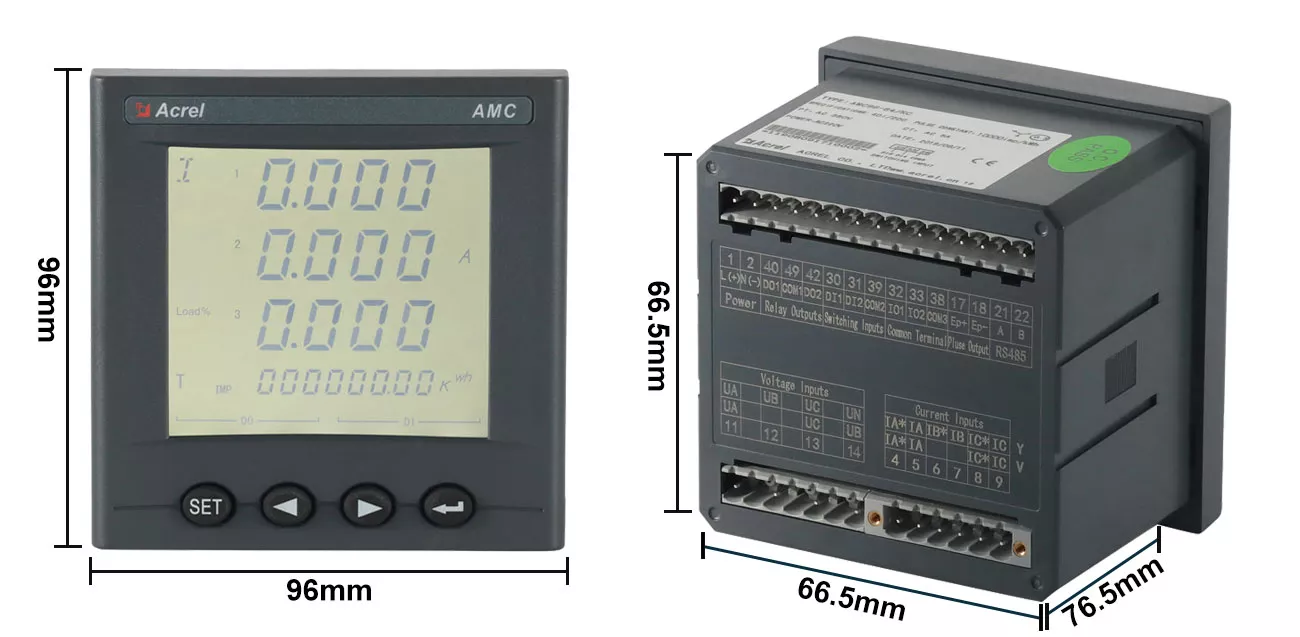

Outline Dimension

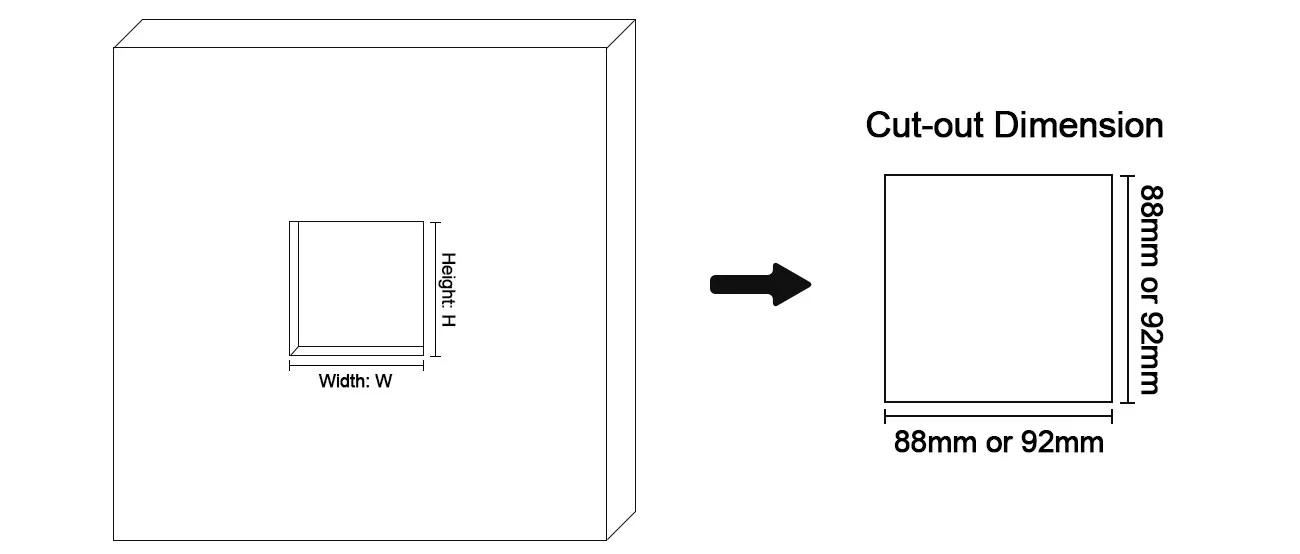

Cut-out Dimension

About Packagement

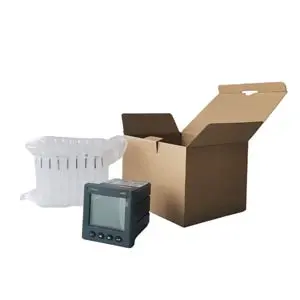

Packaging Overview

(Minimum)

Packing Dimension and Weight

(Minimum)

Minimum Package Contain 1 pcs Products

Dimension: 280mm*245mm*200mm

Total N.W. (1 pcs)

0.74 KG

Packing Dimension and Weight

(Large)

Large Package Contain 36 pcs Products

Dimension: 535mm*525mm*475mm

Total N.W. (36 pcs)

13.82 KG

Average

Lead Time

Manufacturing: 3~4 days

(If paired with system need extra 1~2 days for adjustment)

Shippment: 8~9 days

(World Wide Shipment)

Product

HS Code

9028301400

Country of Origin

China

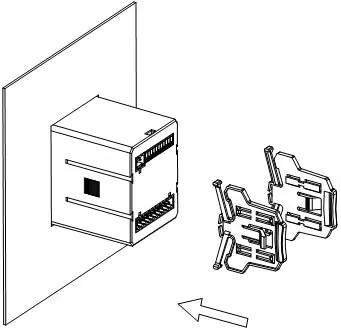

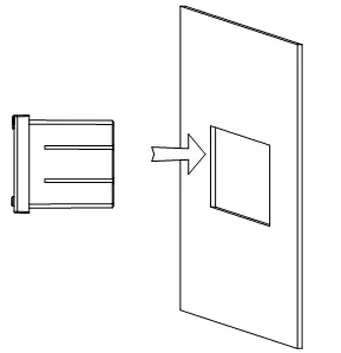

Drawings of AMC96L-E4 Multi-Function Three Phase Energy Meter

Wiring of AMC96L-E4 Multi-Function Three Phase Energy Meter

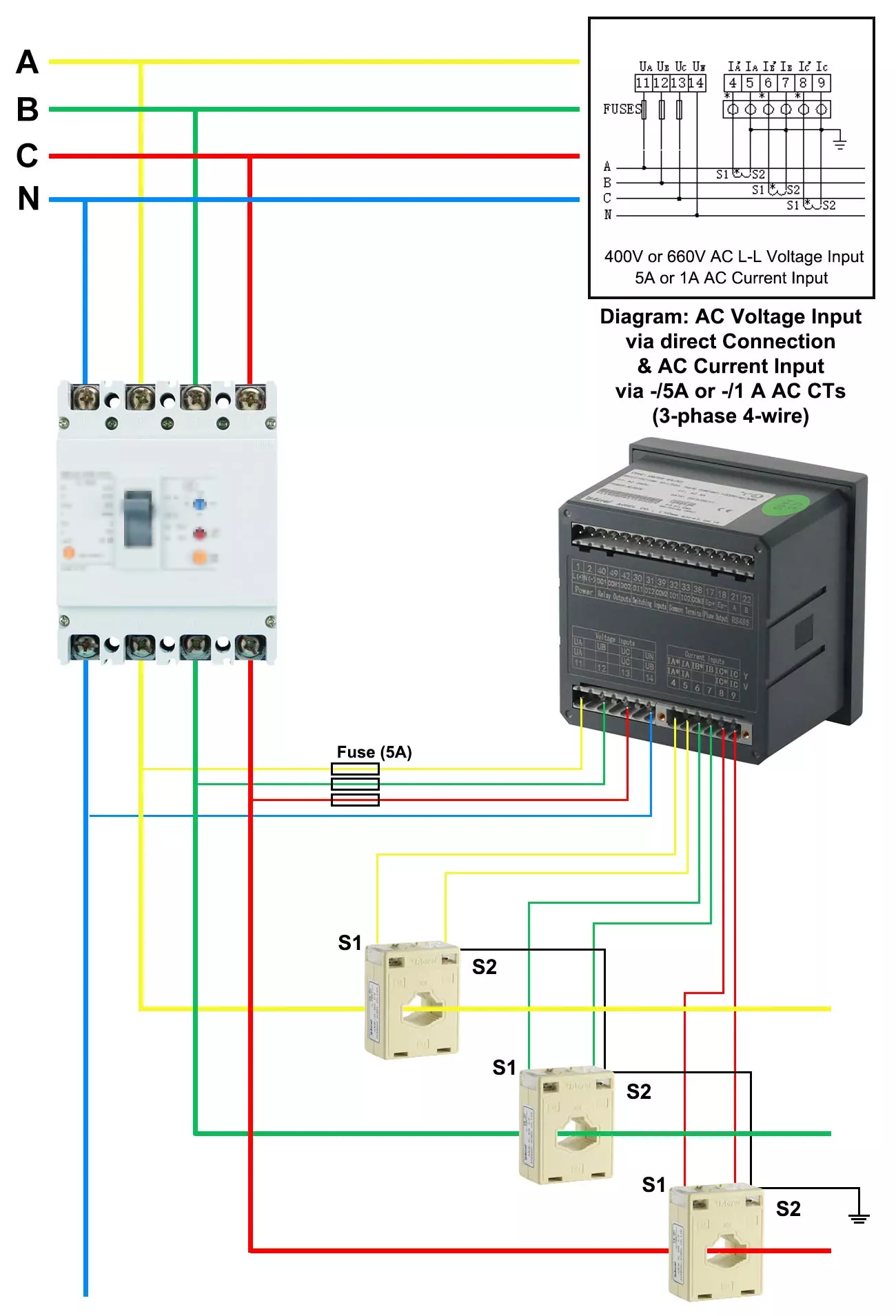

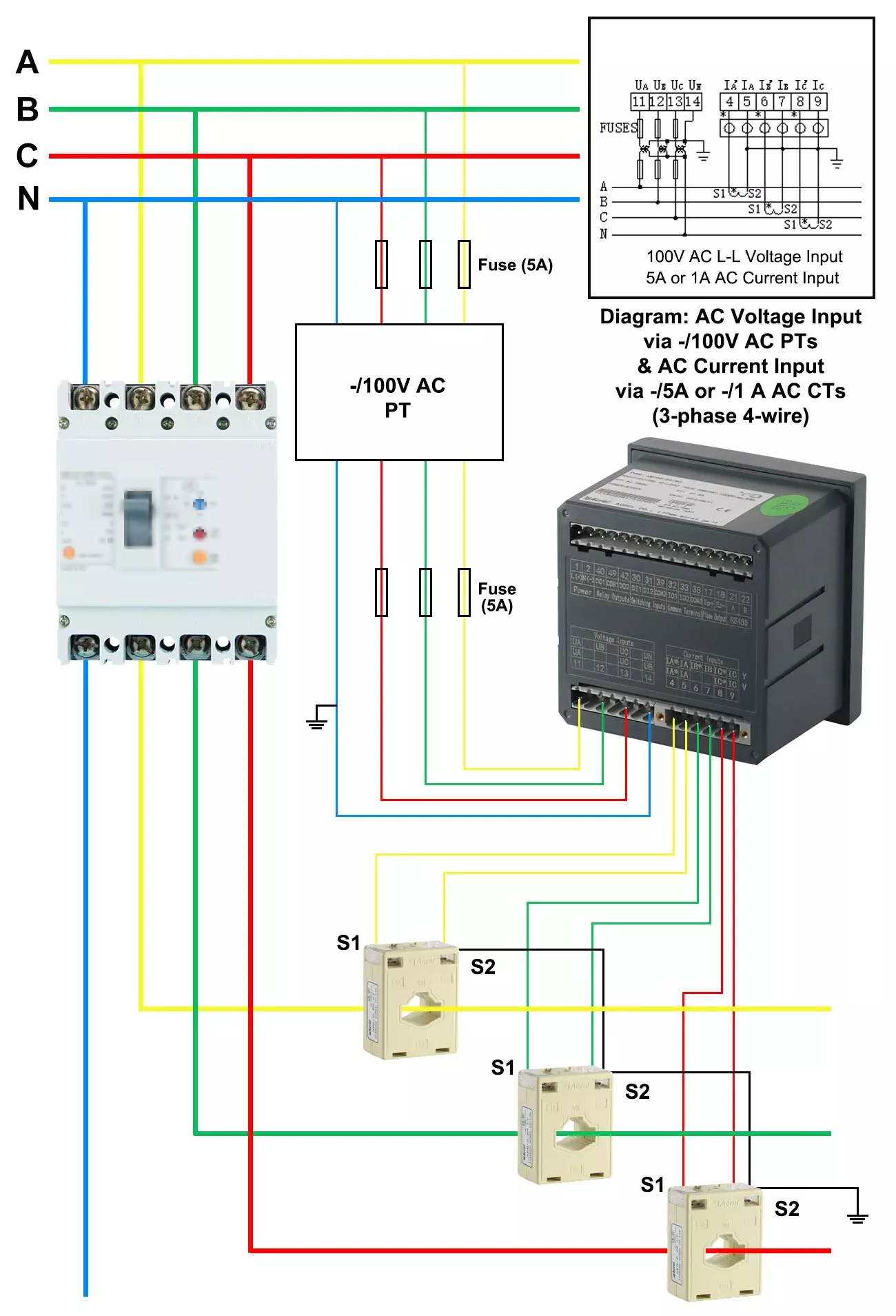

AC Voltage Signal (400V or 660V AC L-L) Input via direct Connection & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 4-wire)

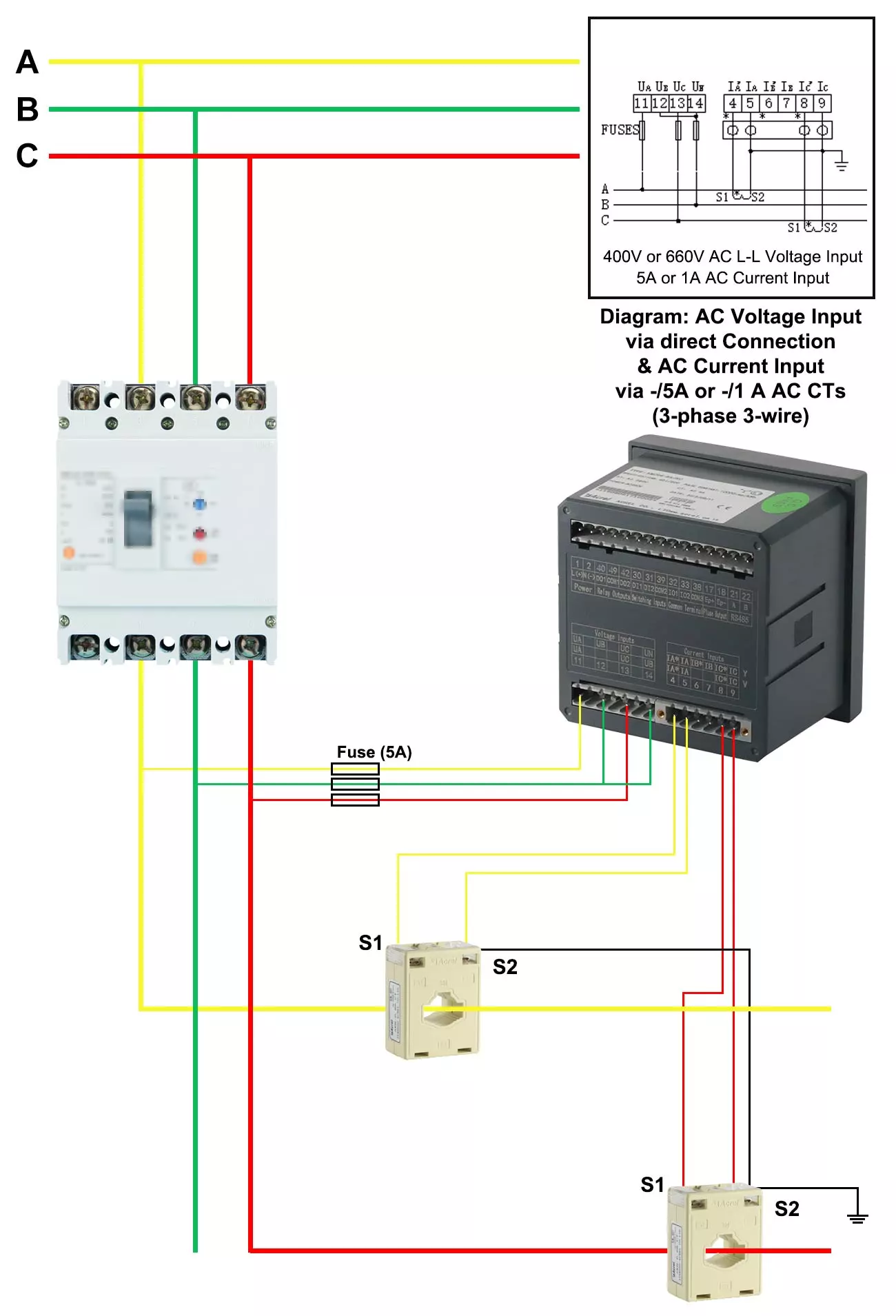

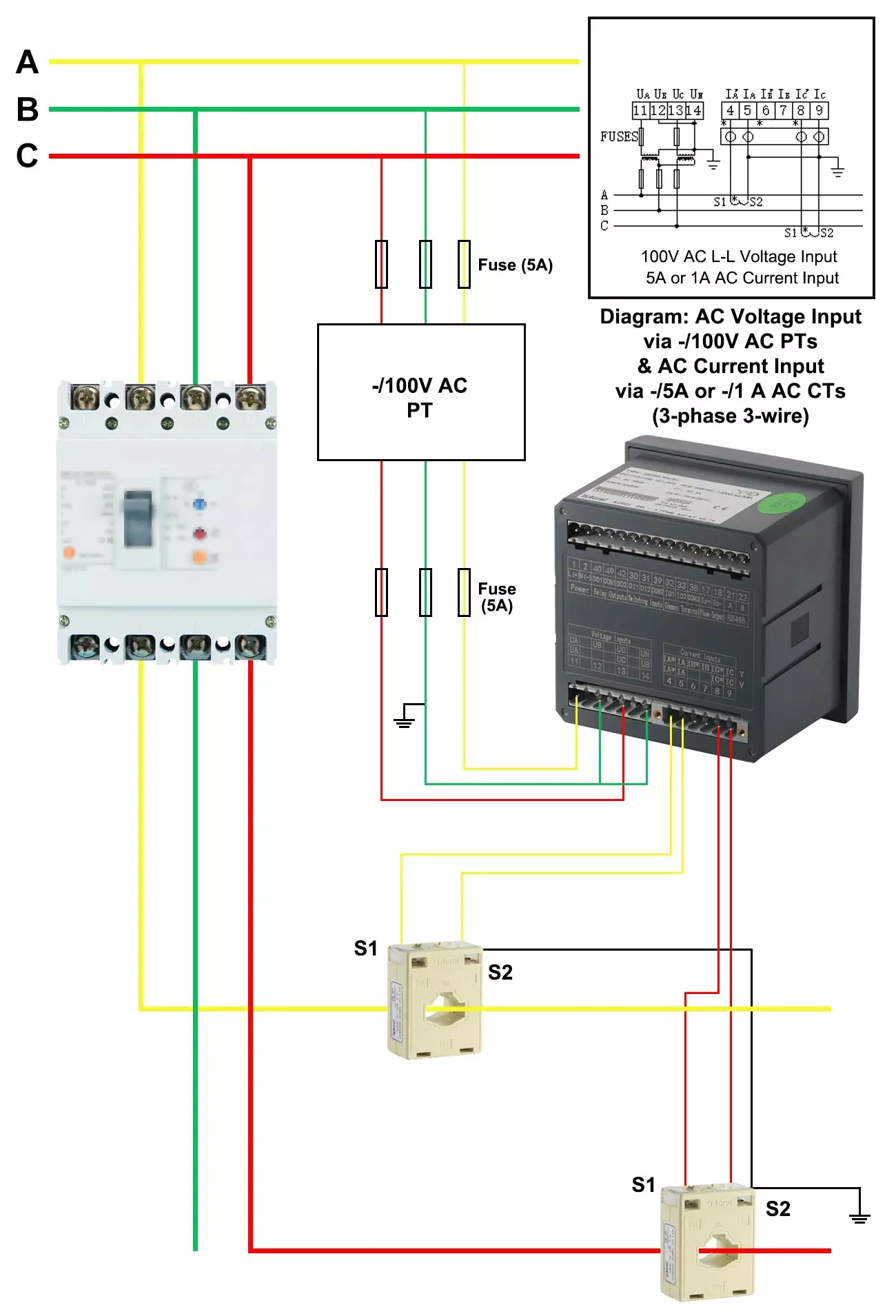

AC Voltage Signal (400V or 660V AC L-L) Input via direct Connection & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 3-wire)
