Technical parameter		Index
input	DC rated voltage	1 channel: -48VDC
	DC current	6 channels hall sensors output is 5V,current ratio can be set accordingto the actual ratio
	Commercial power monitoring	1 channel: 0-5VDC
	Overload capacity	Voltage: 1.2times continued,2 times continued 1s;
	Overload capacity	Current: 1.2 times continued,10 times continued 1s.
Accuracy (superposition hall sensors)		1%In≤I≤10%In error+2.5%; 1>10%In error土2%
Measurement resolution		Voltage output accuracy 0.01V;current output accuracy 0.01A;
Measurement resolution		power output accuracy 0.01kw; energy output accuracy 0.01kwh.
function	Basic function	Monitor device system time, total voltage , output total current, power,energy , each channel voltage, current, power, energy;,LED indicatordisplay;485 communication.
	Metering function	Start current: under rated voltage, when the load current value of themeter doesn't exceed 1% of the max. current, the meter starts.
	Metering function	Shunt running current: when there is no current in the current circuit ofthe meter, and 85%-125%of the rated voltage is applied on the voltage circuit, the calculator shall not have more than one digital change.
	Alarm function	DC voltage output low alarm,DC voltage output high alarm,one powerdown alarm, module voltage loss alarm, metering branch error alarm,internal program error alarm, clock error alarm,memory failure alarm,AC input power failure alarm,AC input power failure alarm
	Timing function	support broadcast timing, could remote timing to the meter through RS485 communication.
	Communication	Single channel RS485，baudrate 9600bps，can be set to 1200BPS,2400bps, 4800bps.
	Communication	Communication protocol: standard or custmized

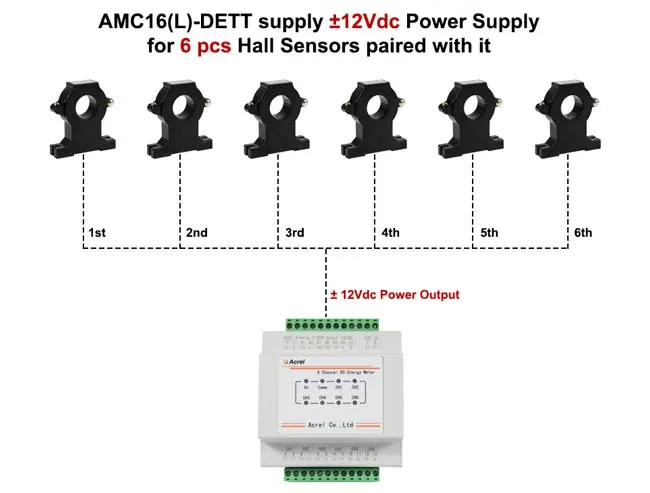

	Hall sensor power supply	Power supply output:+12V/100mA, -12V/50mA
	Clock accuracy	≤0.5S/d(23C),≤1S/d(-20C-60°℃),
Auxiliary power supply	Voltage range	-40V~-60VDC
Auxiliary power supply	Power consumption	Whole device≤2W( no hall power supply output)
Storage		lt has the storage function of historical power data and historical alarm information, and the memory is 2MB
Insulation resistance		≥40MQ
environment	Temperature	Working : -20°℃~+60°℃; storage:-40℃~+70°℃
	Humidity	≤98% no condensation, no corrosive gas place
	Altitude	≤4000m
Protection level		IP20
Material flame retardent		Terminal glow wire temperature 960°C+10°℃ ,shell glow wire temperature 650°C士15℃
installation		Standard 35mm din rail
Lightning protection	Voltage input (differential mode)	Peak value 5kA
Lightning protection	Auxiliary power supply (differential mode)	Peak value 5kA

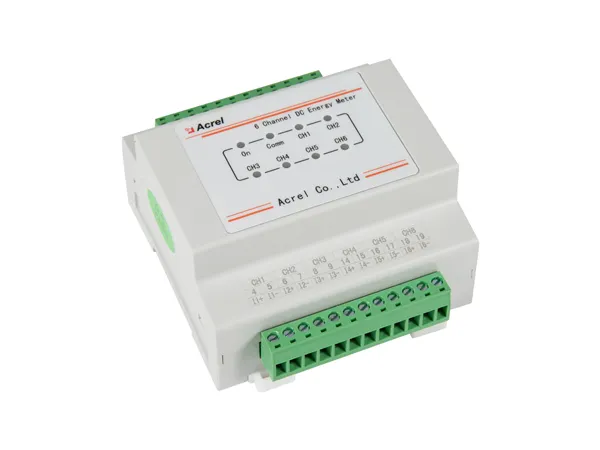

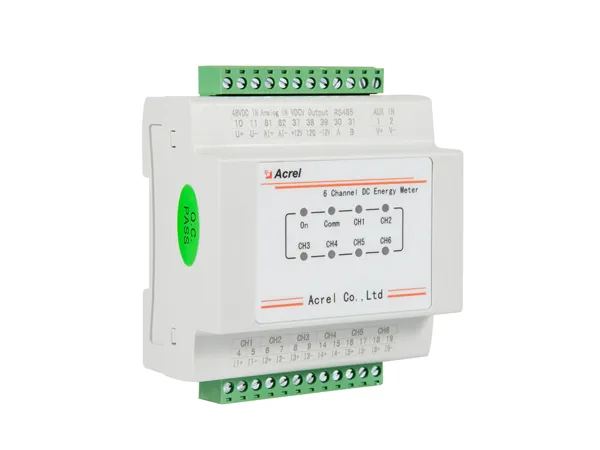

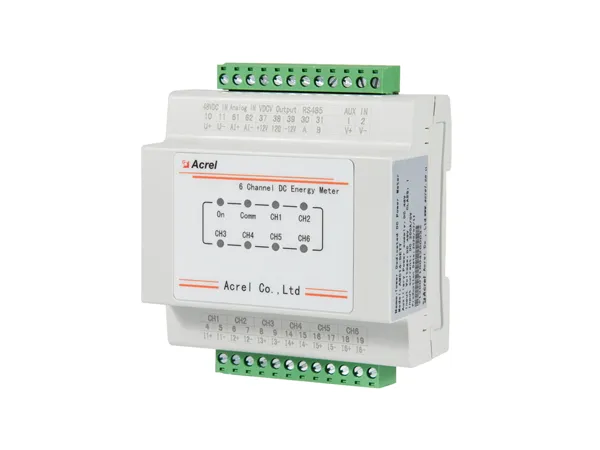

AMC16-DETT Base Station Multi-Circuits Energy Meter

Features of AMC16-DETT Base Station Multi-Circuits Energy Meter

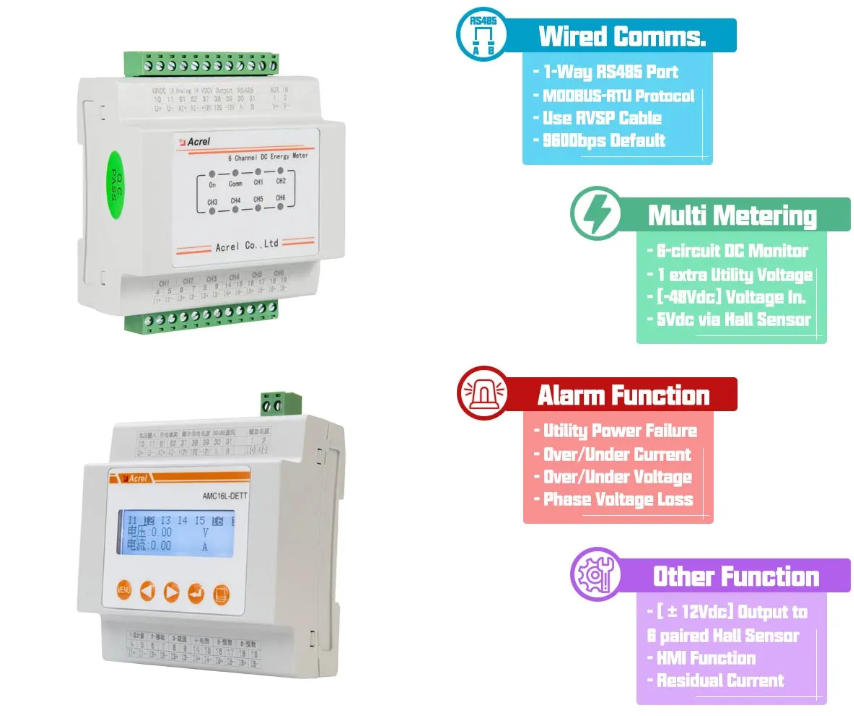

Main Features

Specifications of AMC16-DETT Base Station Multi-Circuits Energy Meter

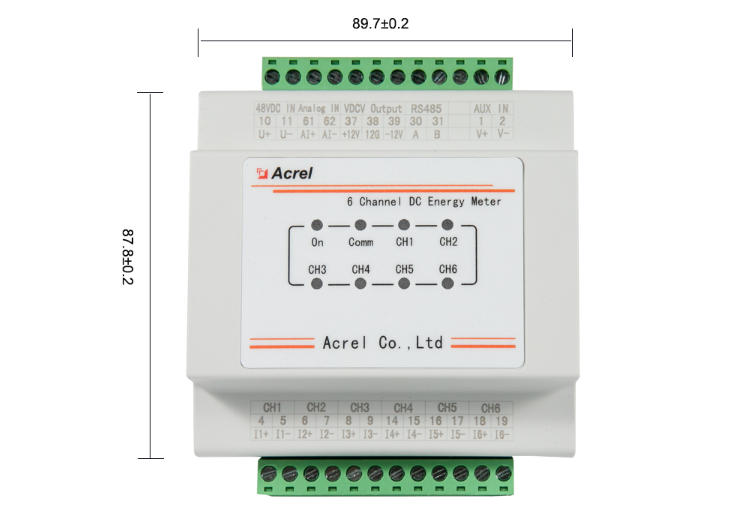

Dimension of AMC16-DETT Base Station Multi-Circuits Energy Meter

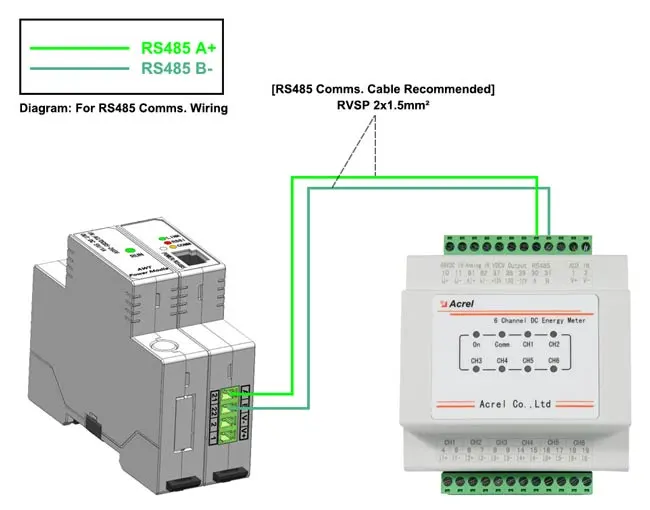

Wiring of AMC16-DETT Base Station Multi-Circuits Energy Meter

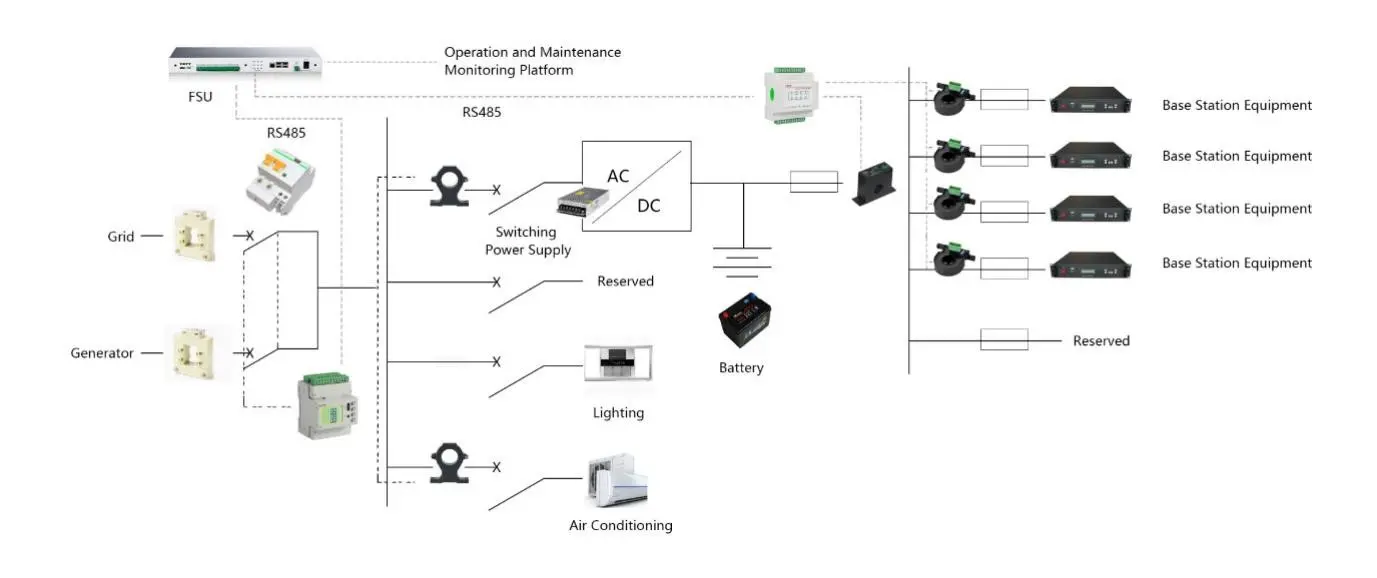

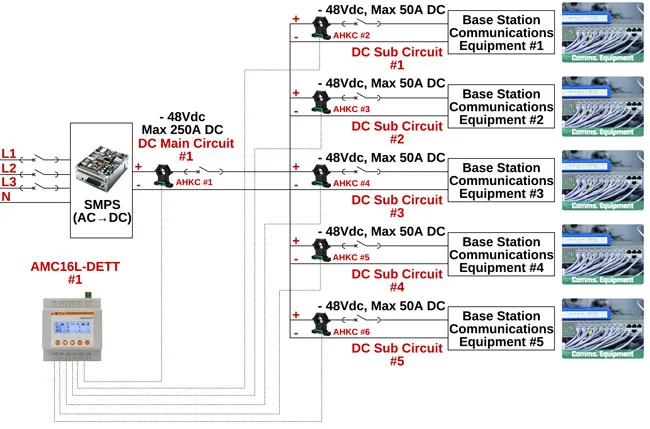

Network
