Parameter	Description&Value
Measurement	kWh&kVarh	Total active kWh (bidirectional --positive and negative in total)
Measurement	Electrical Paratmeters	U (Voltage), I (Current), P (Active Power), Q (Reactive Power),S (Apparent Power), PF (Power Factor), F (Frequency)
Function Mode	Prepaid Mode	Meter will shut down the power once the credit balance is below zero. (Data like credit balance is saved in the meter)
	Postpaid Mode	Meter won't shut down the power once credit balance is below zero. (Can remotely control the meter to shut down the power by using Prepaid System)
	Mode Change	Meter can change the mode between prepaid and postpaid by receiving the command from prepaid system
Control	Auto-tripping Control	Auto-tripping control is processed by the built-in high-capacity holding relay of the meters to realized on-off control of circuits breaker, also, this type of control will only be triggerred when meter is in Prepaid Mode
Control	Remote Control	Remote control will be command by prepaid system. When users give a command of switch on-off to a certain meter, this command will be send to meters through wireless communication and finally meter will shut down or recover the power after receiving the command. This type of control can be done when meter is in Postpaid Mode

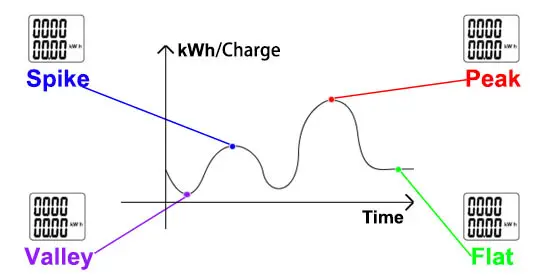

Multi-rate Multi-Tariff	Optional Function	4 tariff rates (spike, peak, valley, flat); 14 time intervals by day
Input Voltage	Rated Voltage	3x380~456Vac L-L (Voltage signal input will be also served as power supply for meters)
	Frequency	45~65Hz
	Consumption	<4VA (each phase)
Input Current	Rated Current	3x10(80)A AC (direct connection); 3x1(6)A AC (connected via CTs)
Input Current	Starting Current	0.004 Ib (direct connection); 0.002 In (connnected via CTs)
Accuracy	Measurement	Class 0.5s
Accuracy	Clock	≤0.5s/d
Pulse	Pulse Width	80ms±20ms
Pulse	Pulse Constant	6400imp/kWh (direct connection); 400imp/kWh (connected via CTs)

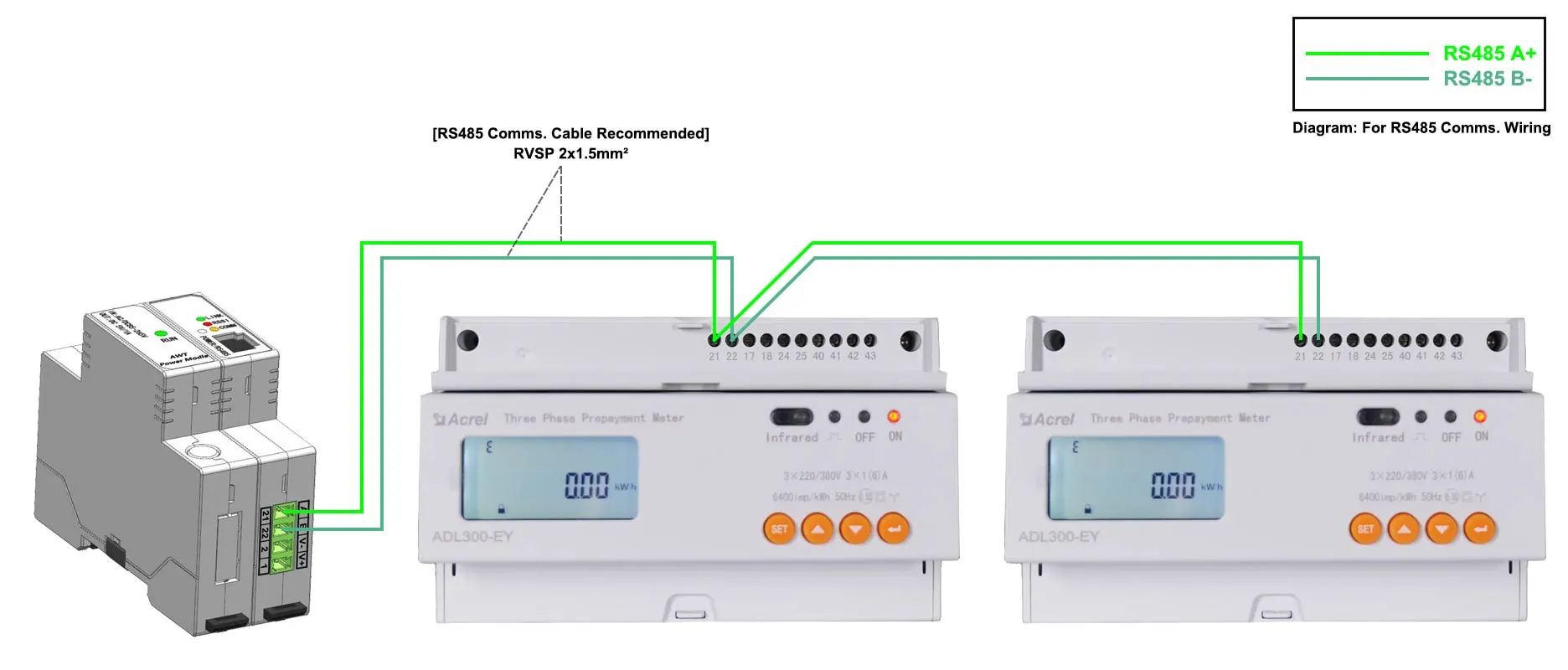

Communication	RS485 Interface	MODBUS-RTU Protocol
Communication	Infrared	Used for Meter Reading
HMI	LCD Display	8 bits section LCD display
HMI	Keypads Programming	Setting of communication, current ratio and etc.
Mechanical Feature	Out-line Dimension (LWH)	72mm88mm70mm
Mechanical Feature	Max Wiring Ability (with Flexible Cable)	25mm²
Environment	Operating Temperature	-25℃~+55℃
	Storage Temperature	-40℃~+70℃
	Humidity	≤95% (No condensation)
	Altitude	＜2000m

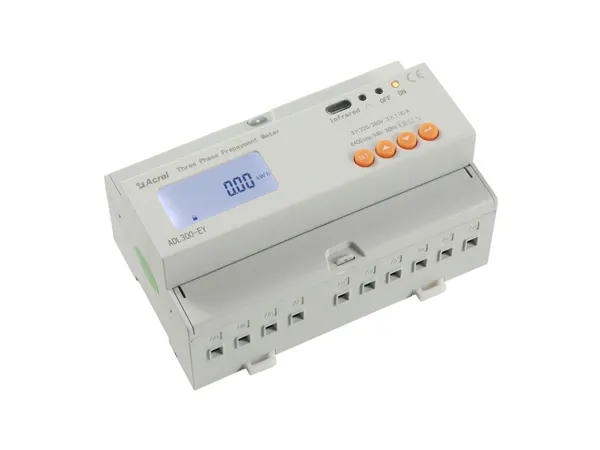

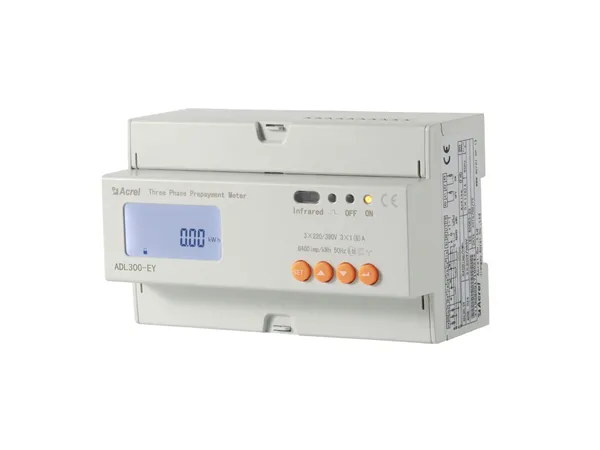

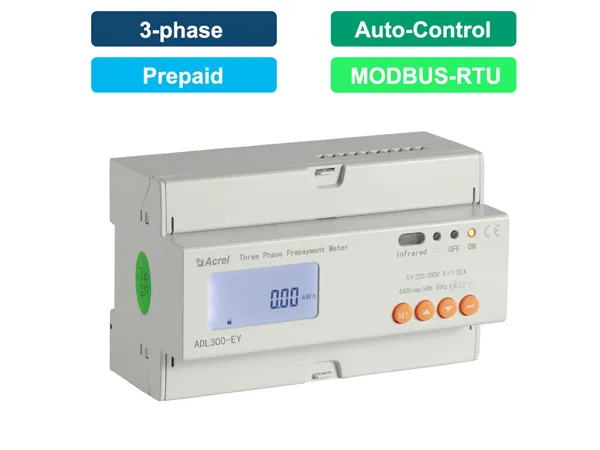

ADL300-EY Three Phase Prepayment Electricity Meter

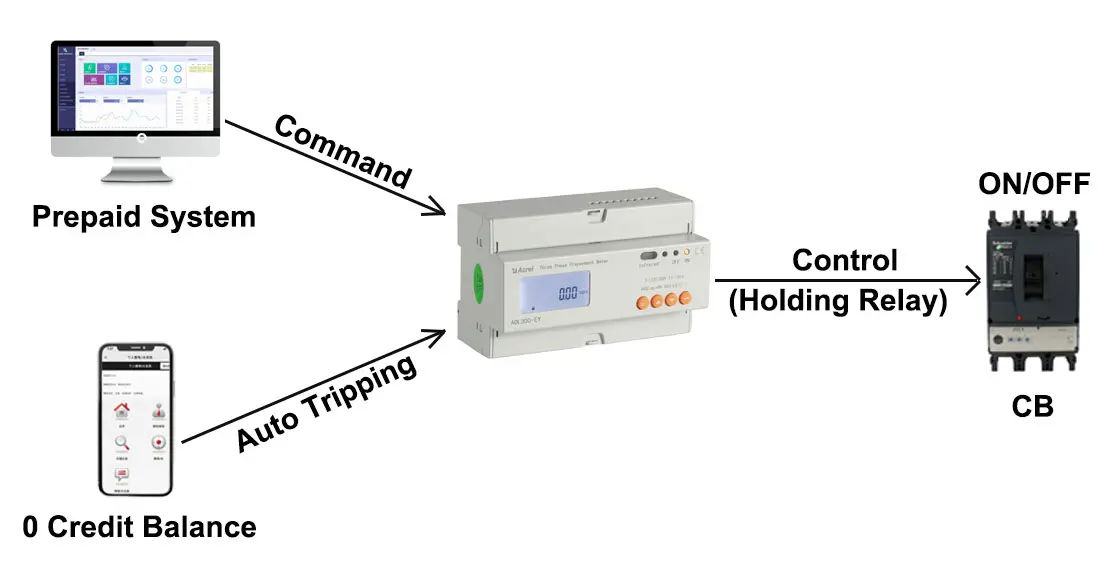

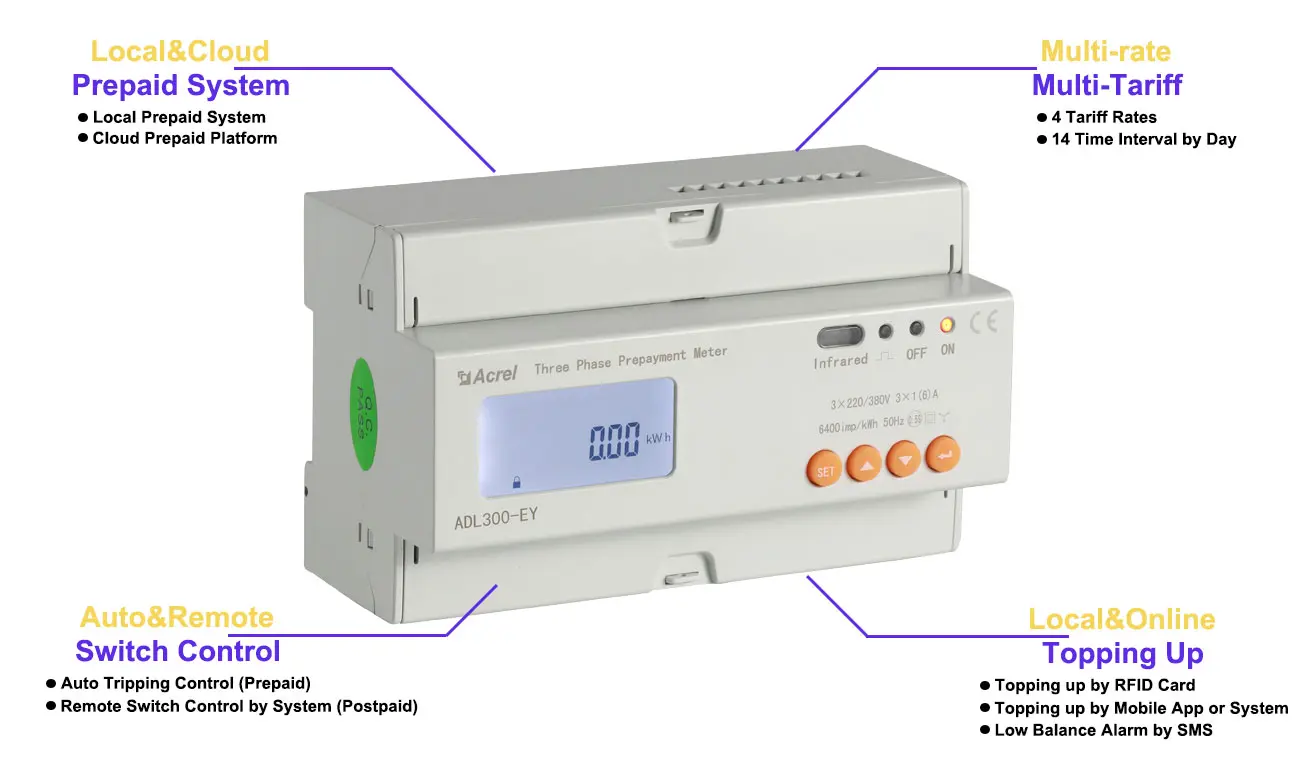

Features of ADL300-EY Three Phase Prepayment Electricity Meter

Specifications of Features of ADL300-EY Three Phase Prepayment Electricity Meter

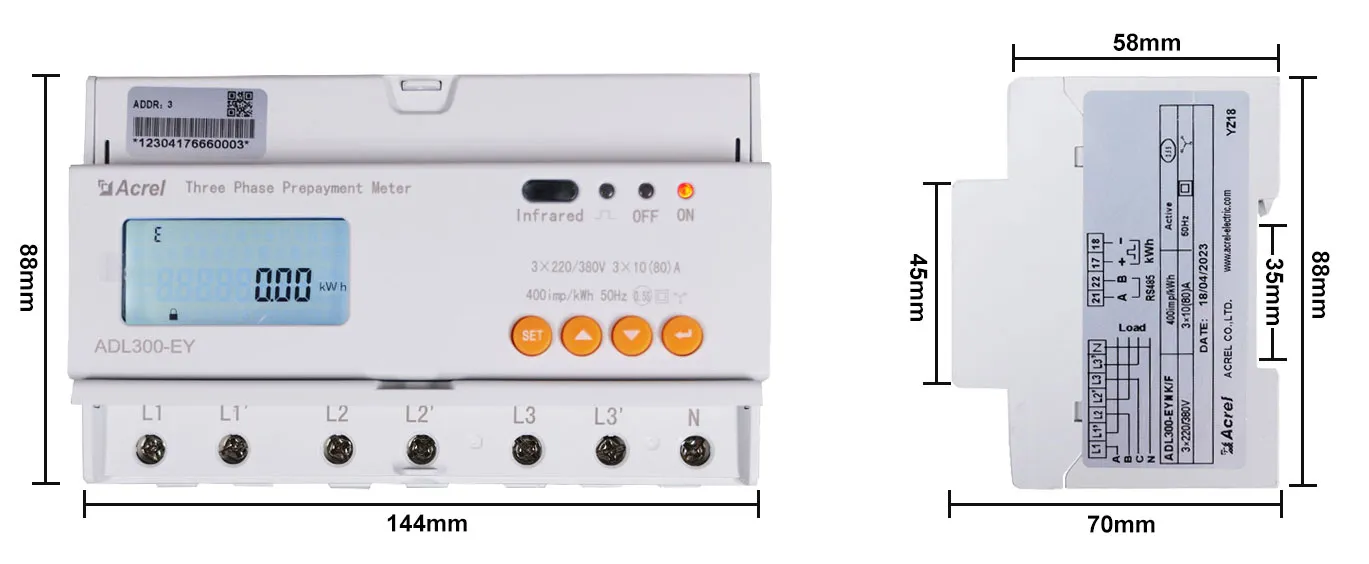

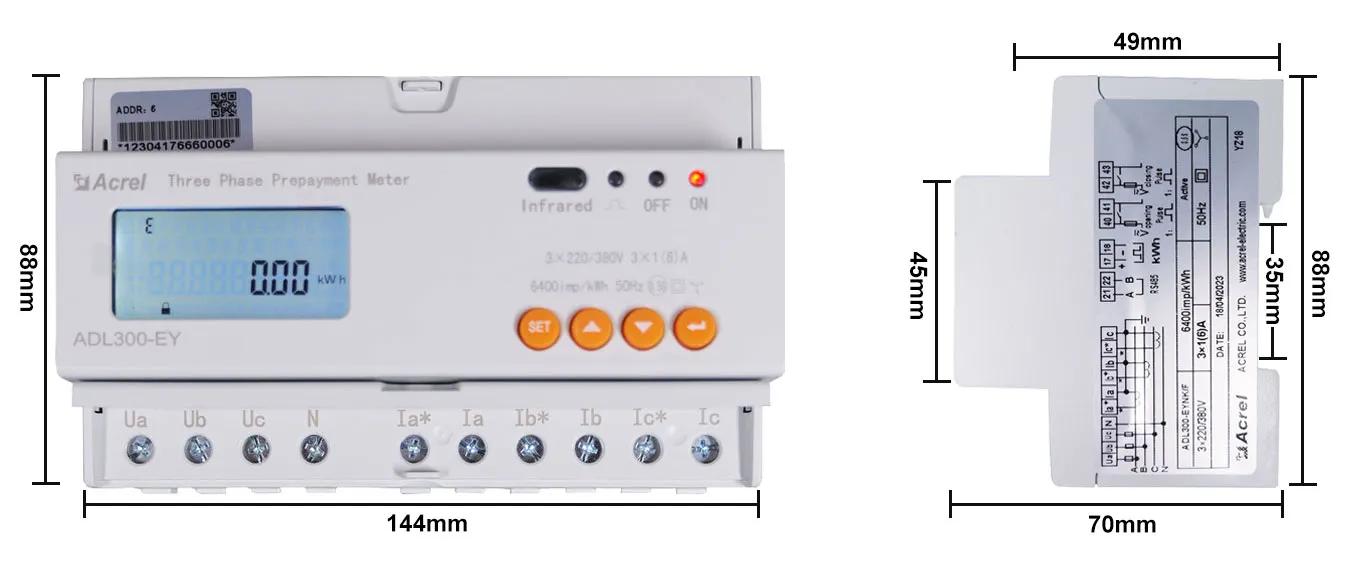

Dimension of Features of ADL300-EY Three Phase Prepayment Electricity Meter

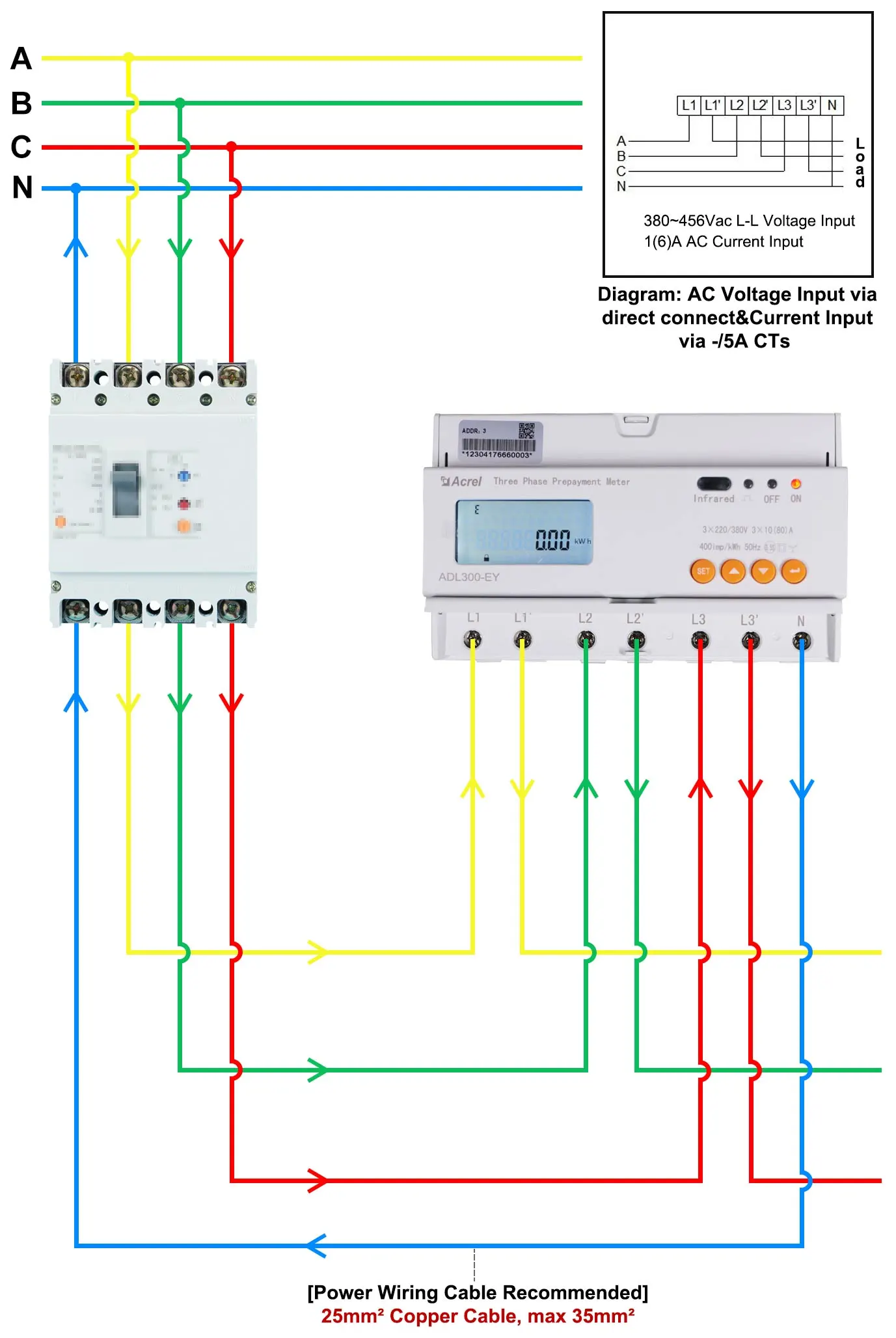

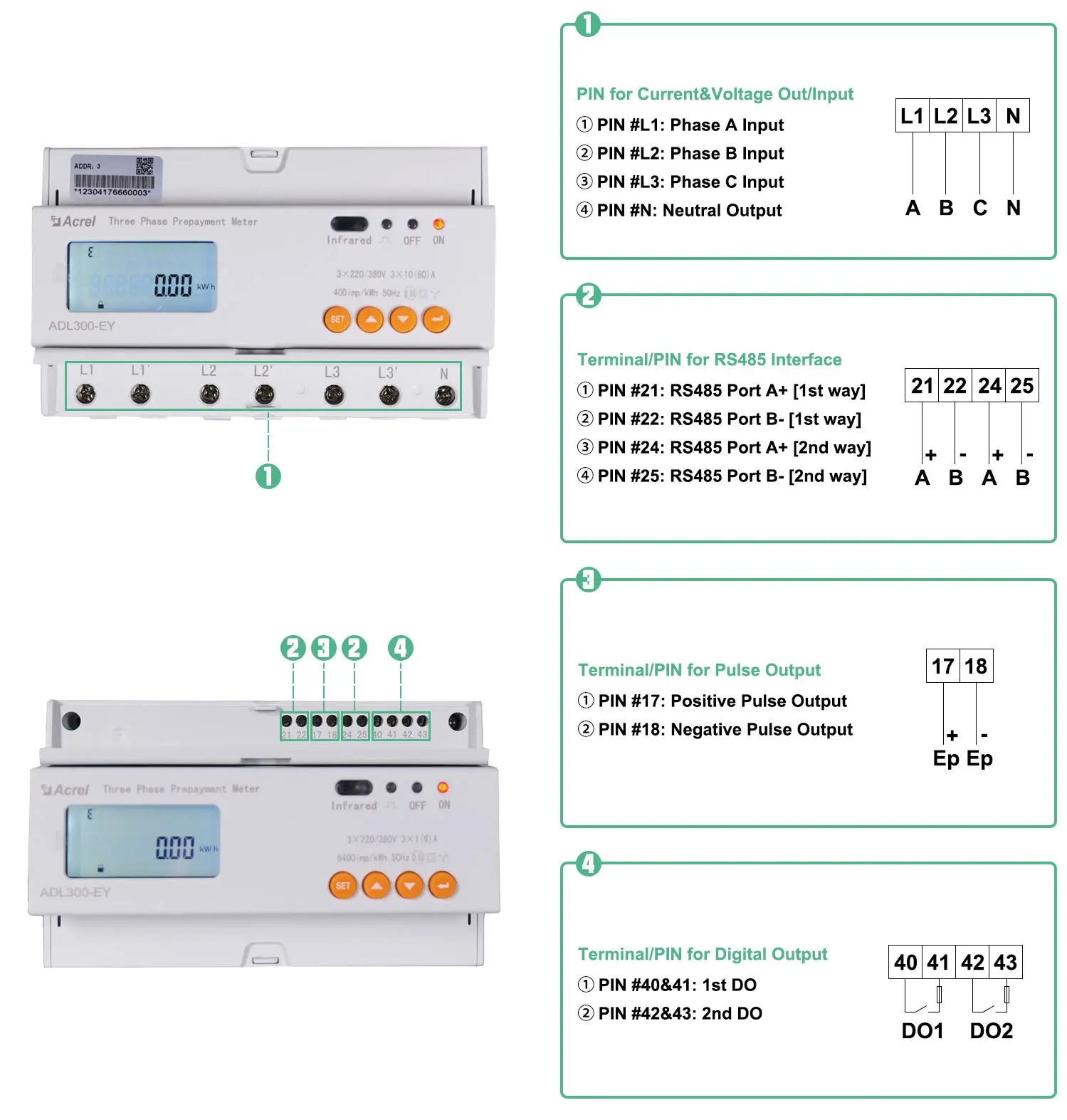

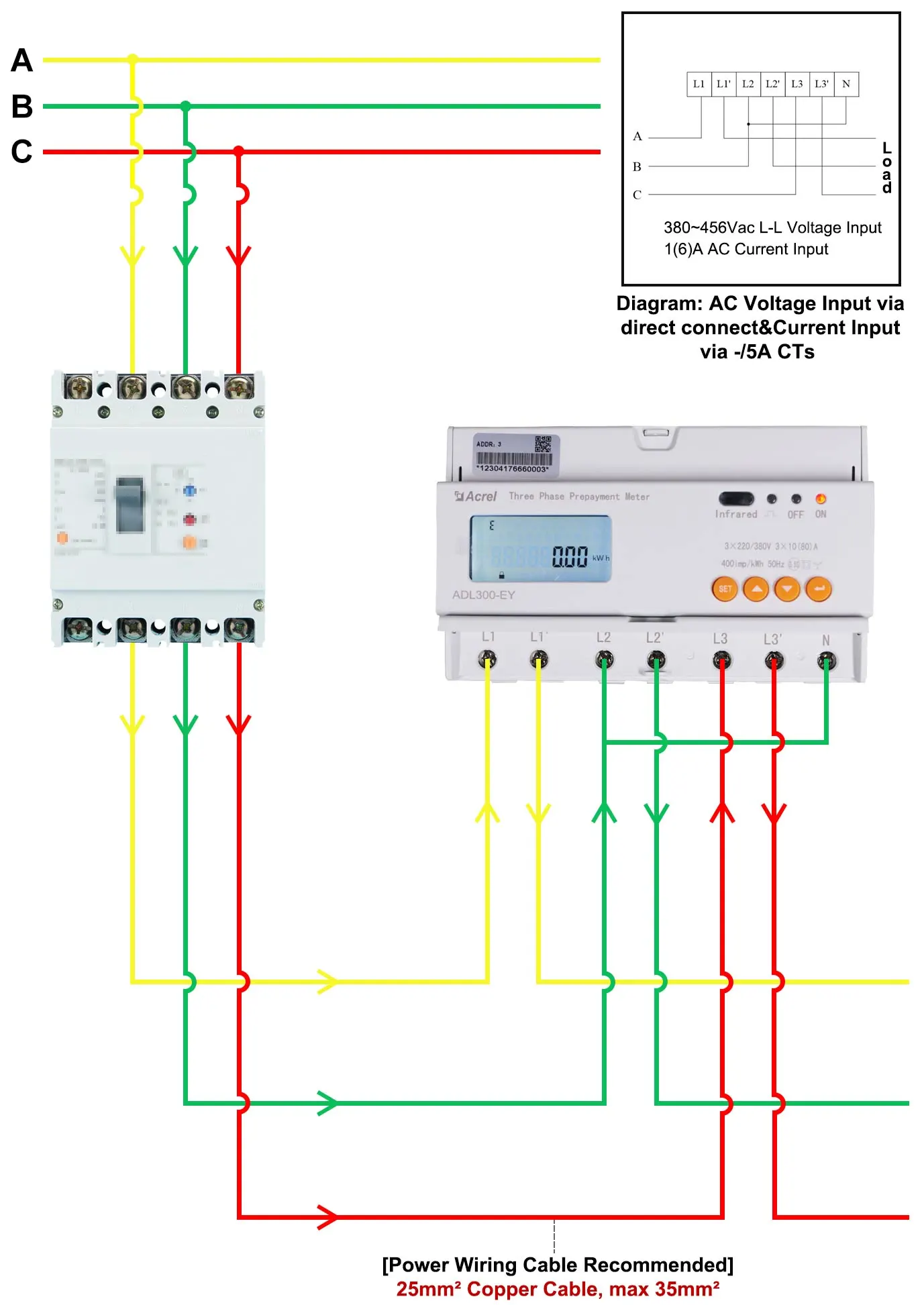

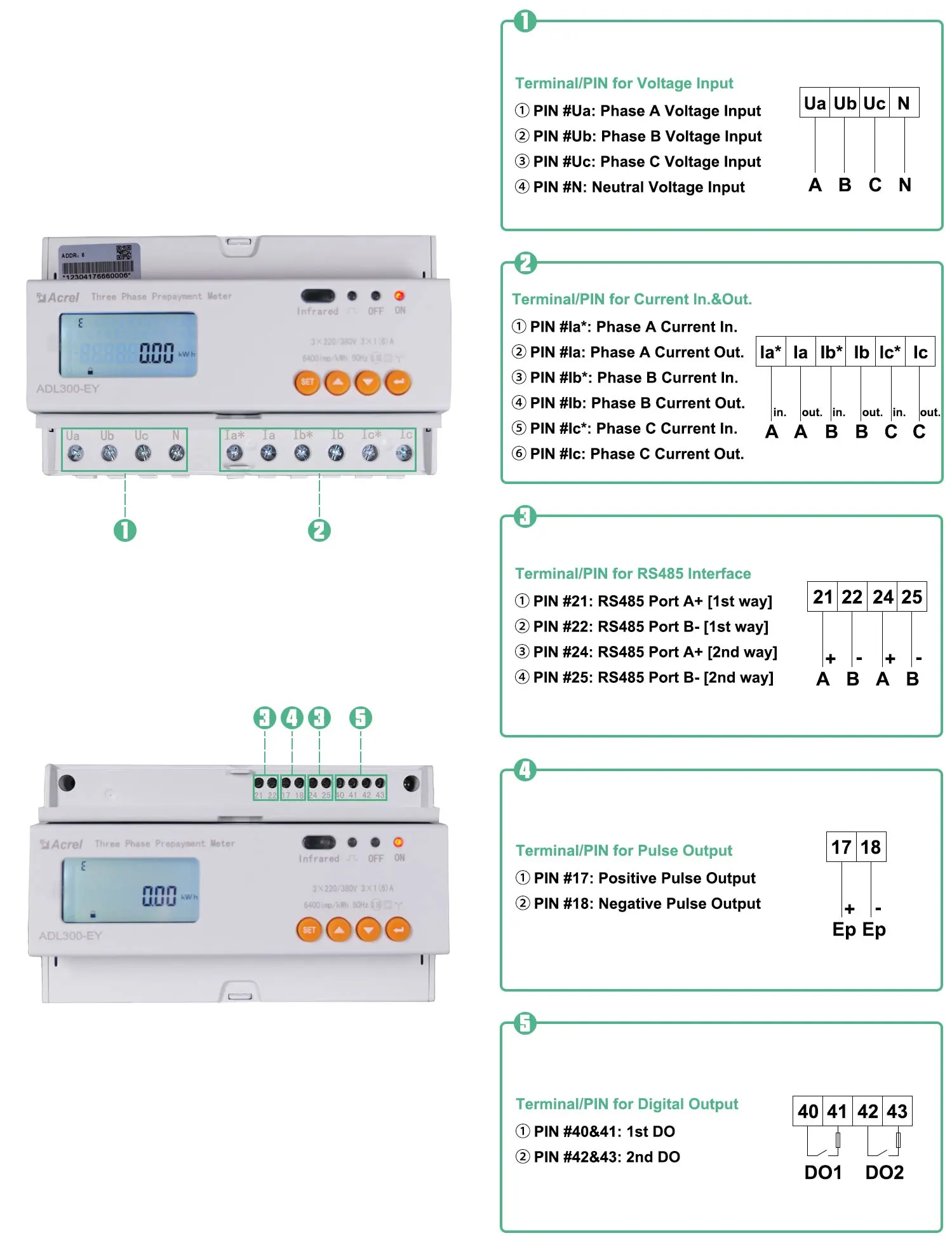

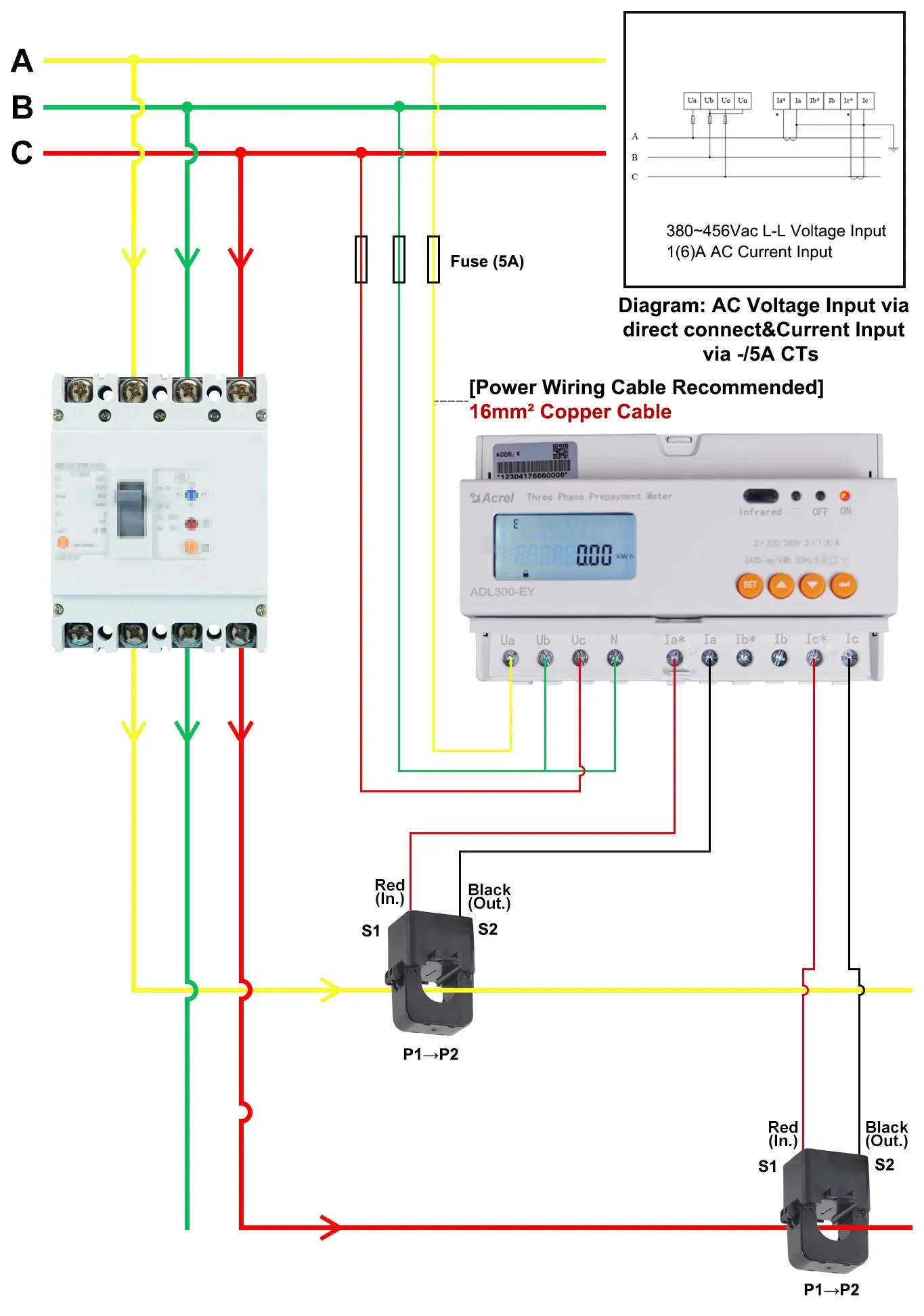

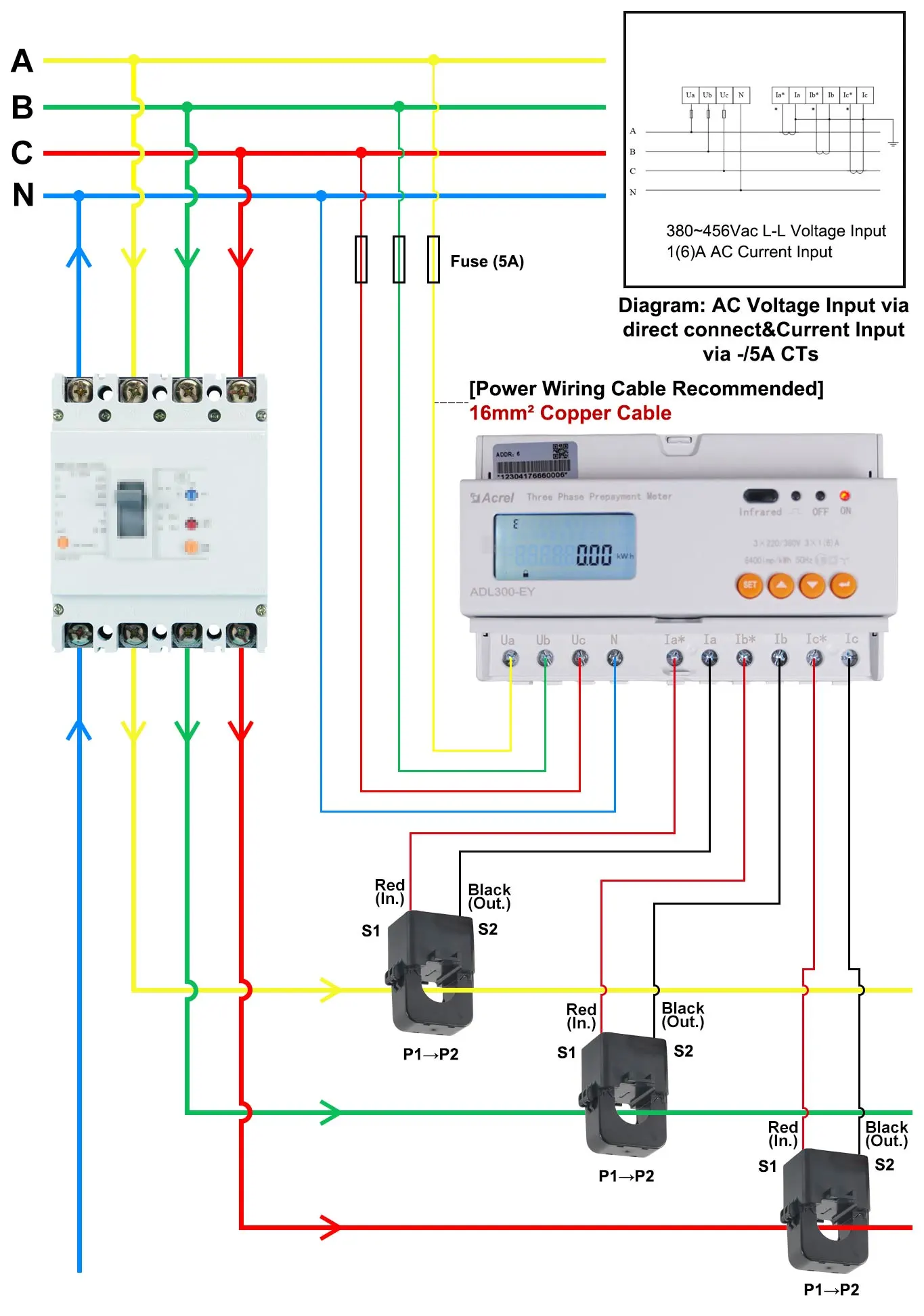

Wiring Illustration of ADL300-EY Three Phase Prepayment Electricity Meter

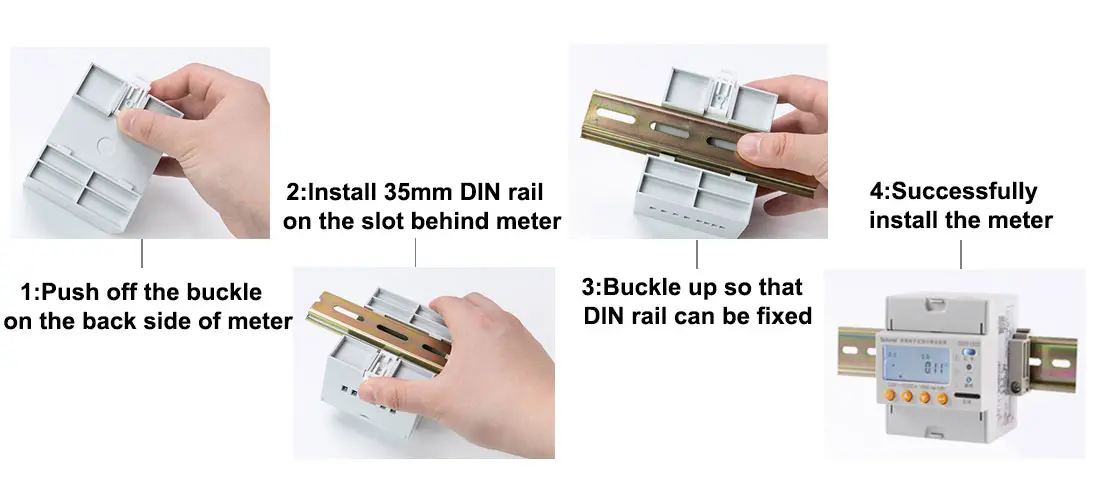

Installation Instruction

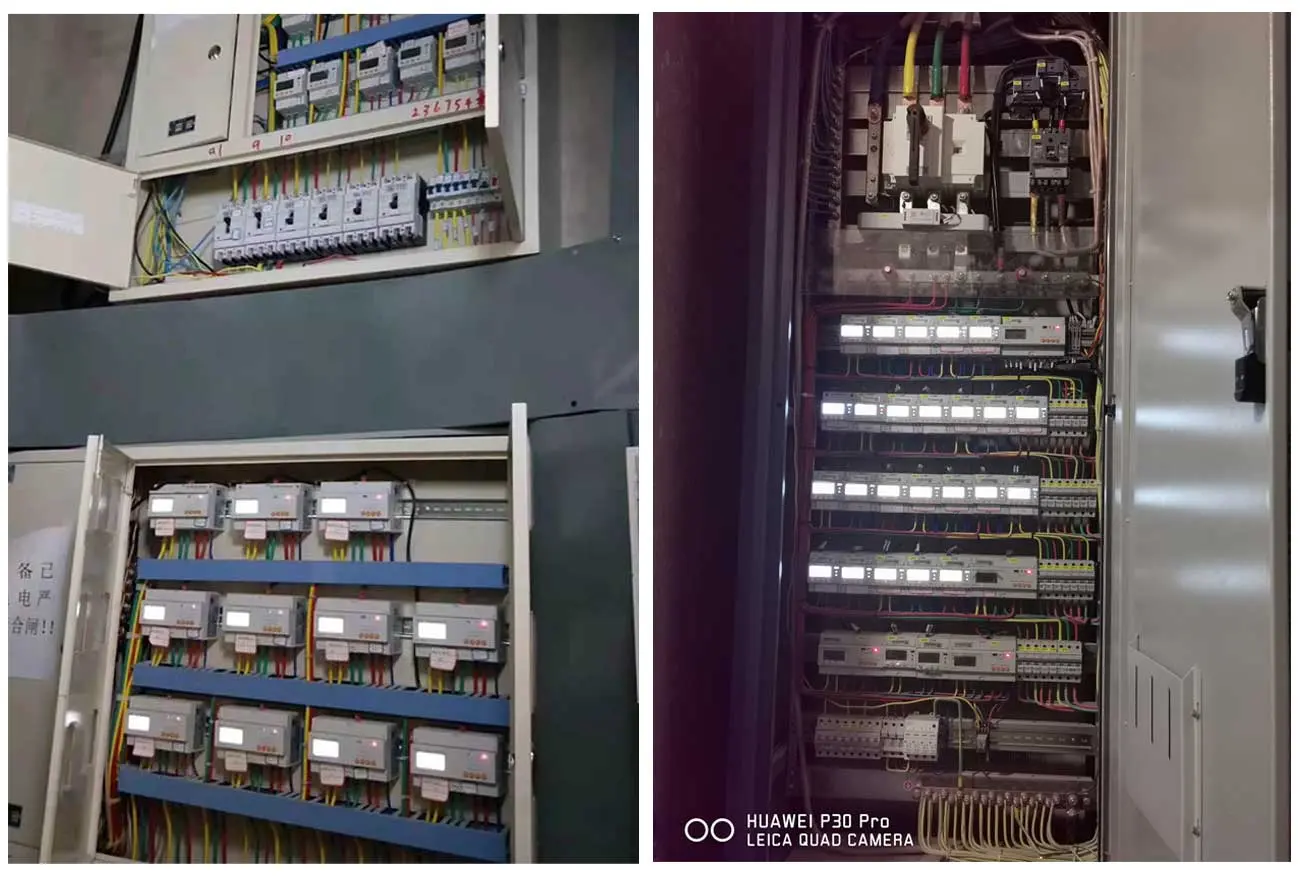

Work-site Installation
