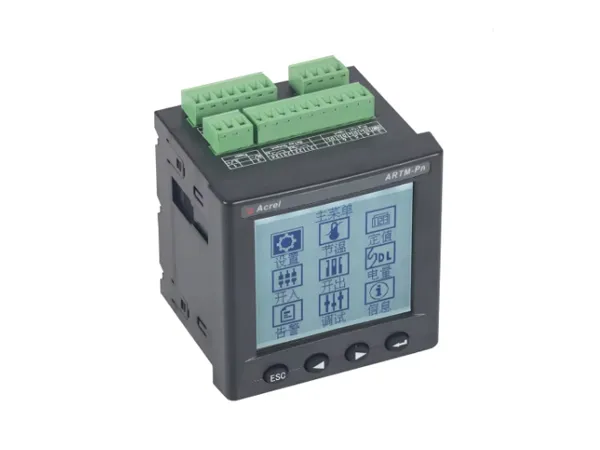

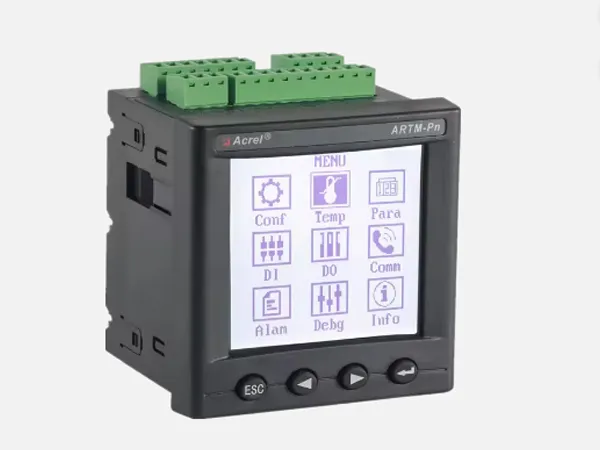

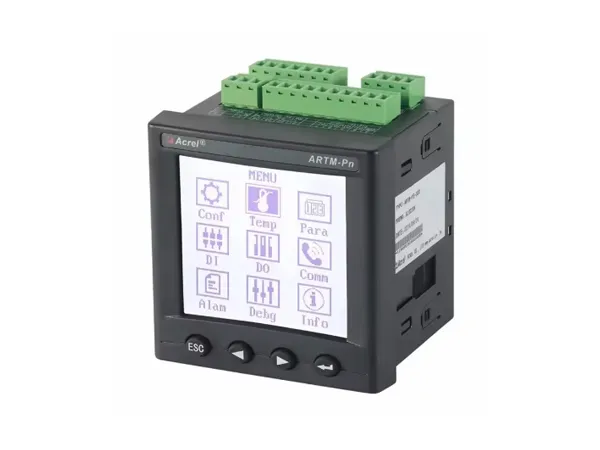

ARTM-Pn Temperature Data Display Device
ARTM-Pn Temperature Data Display Device
ARTM-Pn Temperature Data Display Device
ARTM-Pn Temperature Data Display Device
ARTM-Pn Temperature Data Display Device

ARTM-Pn Temperature Data Display Device

  • Receive&Display Temperature Data: From up to 60 ATE Temperature Sensors

  • Communication Methods: GFSK (with ATE Temperature Sensor)

  • Communication Distance: 150m in open Area & 15m in Building

  • Extra RS485 Communication: MODBUS-RTU

  • DO/DI Function: 2 Over-temp Alarm Relay Outputs & 4 Digital Inputs

  • Dimension: 96*82*96mm (L*W*H)

  • Installation: Panel Mounted (Cut-out Dimension--92*92mm)

  • Electric Parameter Meausurement: U,I,P,Q,F,kWh,kVarh (Optional)



Contact Us
Features Specifications

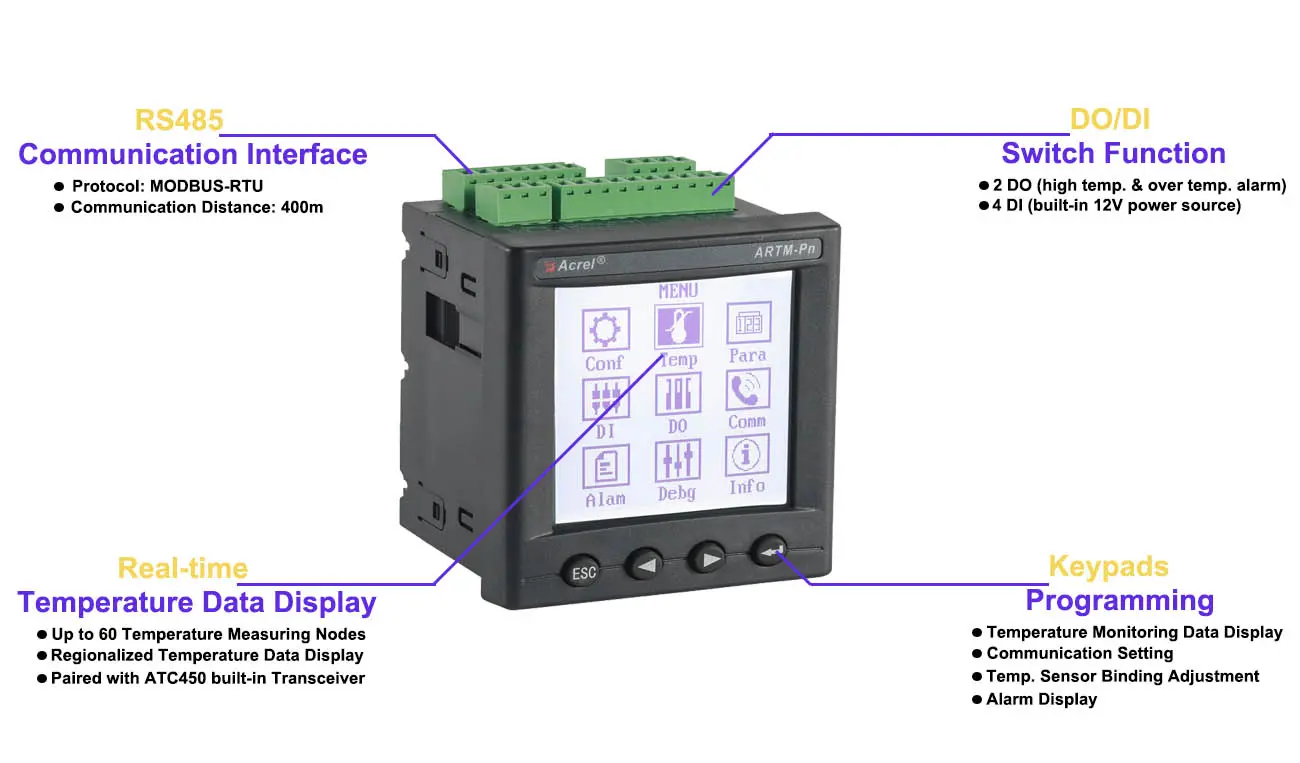

Features of ARTM-Pn Temperature Data Display Device

Features



Real-time Temperature Monitoring Data Display

● Display Data of up to 60 ATE Series Temperature Sensors

● Paired with ATC450 built-in Transceiver

● Regionalized Temperature Data Display

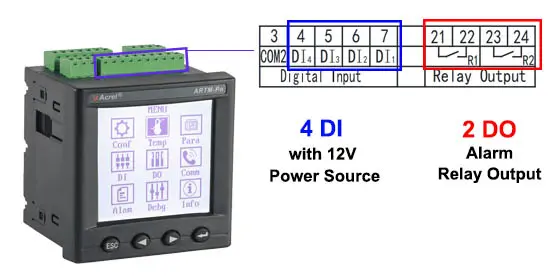

DO/DI Function

● 2 DO (high temperature alarm& over temperature alarm)

● 4 DI (built-in 12V power source)

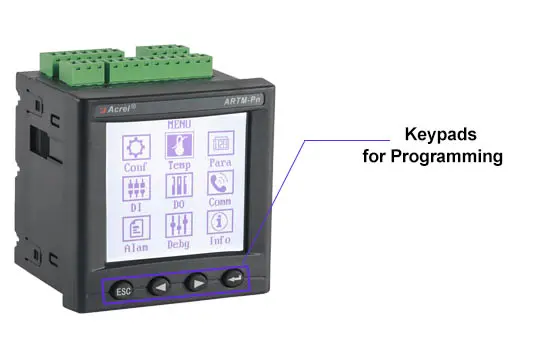

Keypads for Programming

●Temperature Monitoring Data Display

● Parameter Setting

● Temperature Sensors Binding Adjustment

● Alarm Display

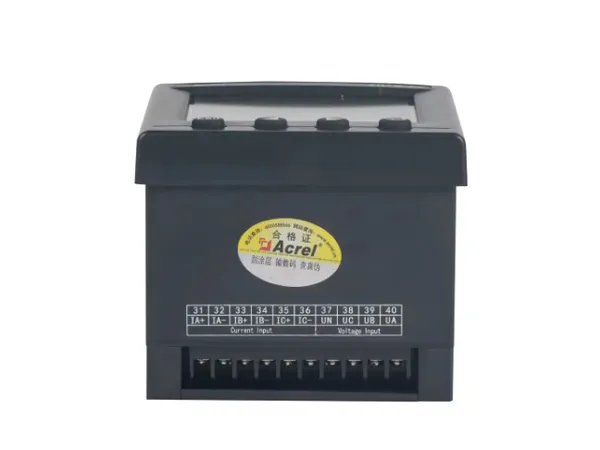

Optional Electric Parameters Measuring Function

● U (Voltage)

● I (Current)

● P (Power)

● Q (Reactive power)

● F (Frequency)

● kWh (phase positive Kilowatt-hours)

● kVarh (Kilovar-hours)





Specifications of ARTM-Pn Temperature Data Display Device

Functions
ARTM-PnARTM-Pn
SensorATE100, ATE200, ATE300B, ATE300, ATE400
Temperature precision±2℃
Sensor number60
Auxiliary Power SupplyARTM-Pn
Auxiliary power upplyAC 85~265V,DC 100~300V
Power consumption8W
CommunicationARTM-Pn
ProtocolModbus-RTU
Rear portRS485
Baud rate(bps)2400,4800,9600,19200
Environmental requirementARTM-Pn
Operating temperature-10℃~55℃
Relative humidity≤95%
Atmospheric pressure86kPa~106kPa
Average work time without stoppage≥50000 hour

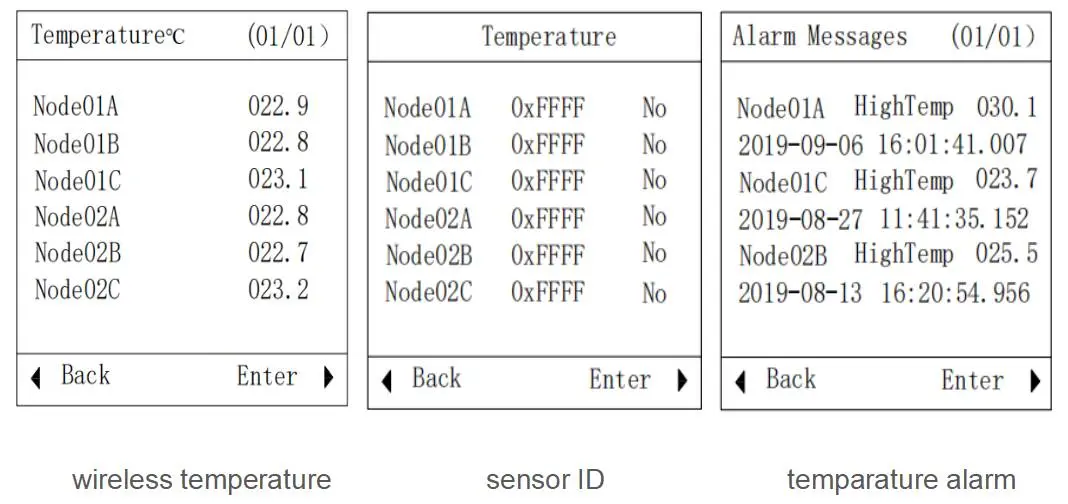

Display Sample





Installation Instruction

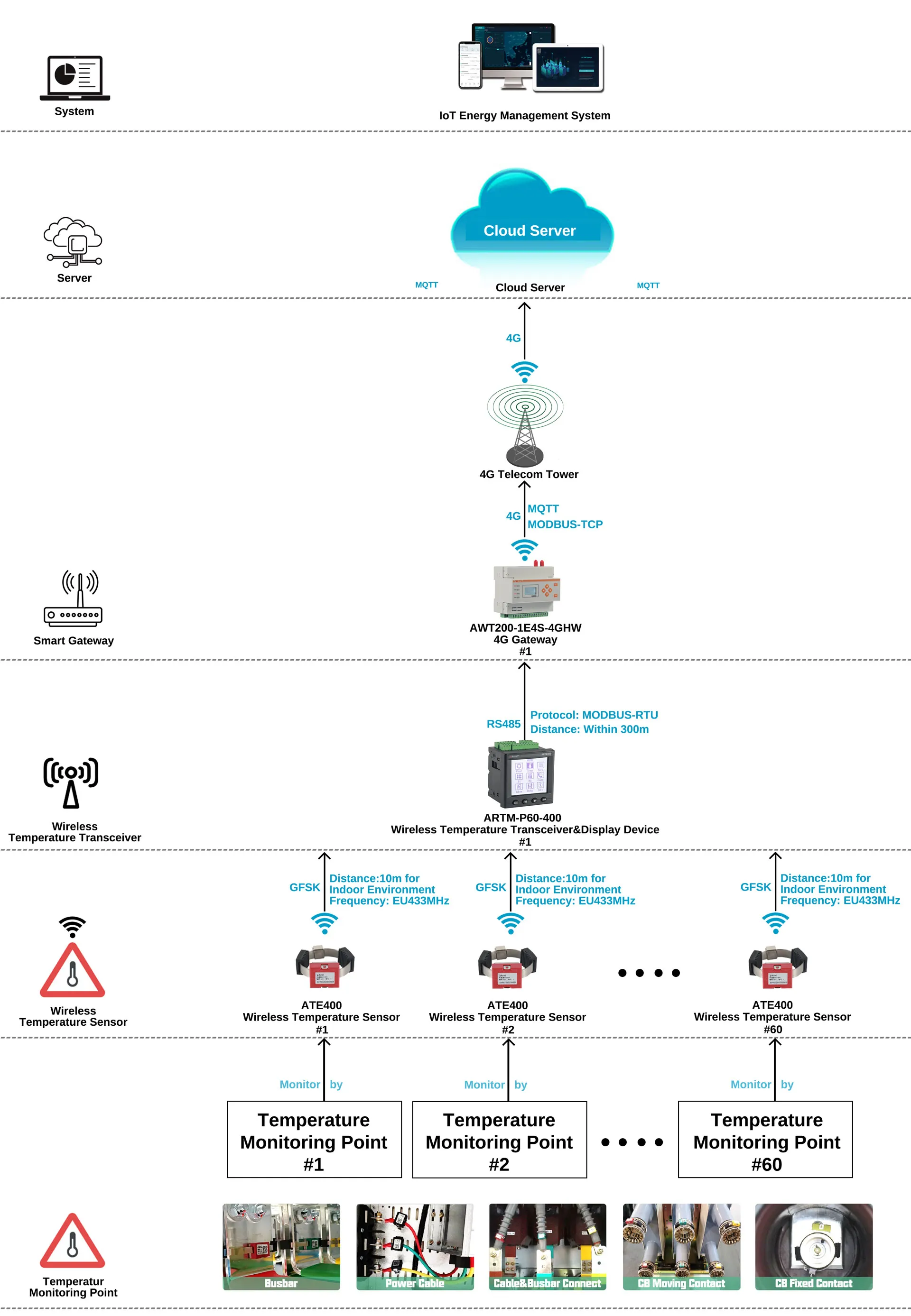

 Common Application Structure

Cloud+Local Solution



Local Only Solution
