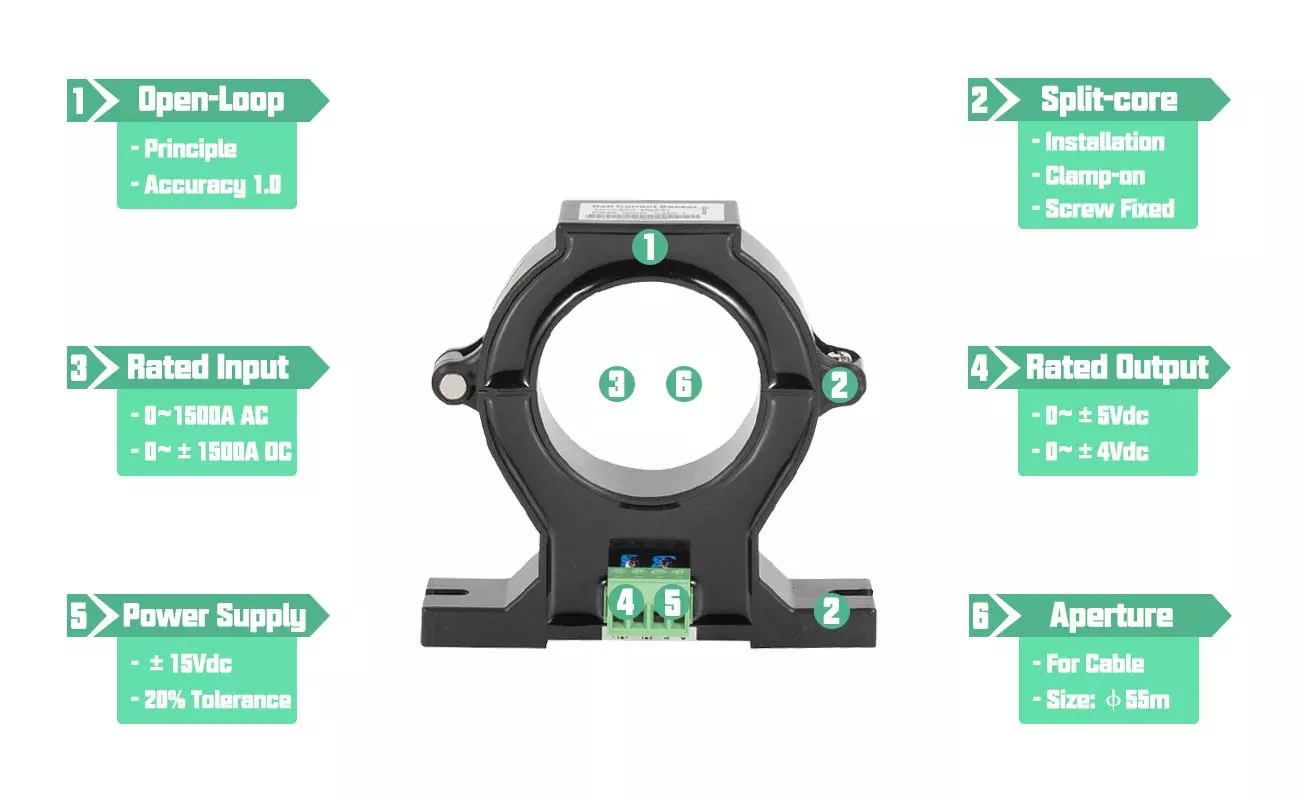

AHKC-EKC Split Core Hall Effect Current Sensor

● Rated Input: 0~±1500A DC or 0~1500A AC

● Rated Output: 0~±5/±4Vdc

● Aperture: φ55mm

● Power Supply: ±12~±15Vdc

● Accuracy: Class 1.0

● Response Time: ≤5us

● Installation: Clamp on (Split-core) measuring cable and screw fixed on panel

● Standard&Certificate: CE; IEC; LVD


Contact Us
Features Wiring Specifications

Product Overview

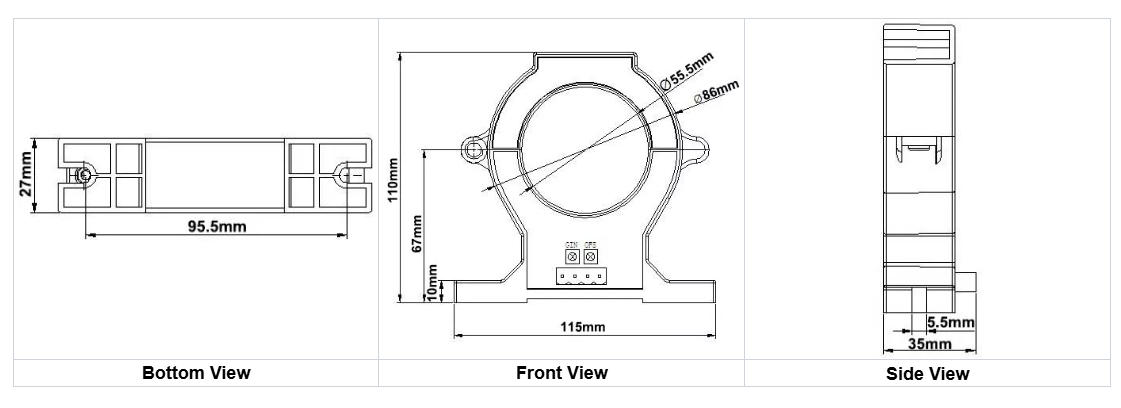

Dimension



Wiring Illustration of AHKC-EKC Split Core Hall Effect Current Sensor

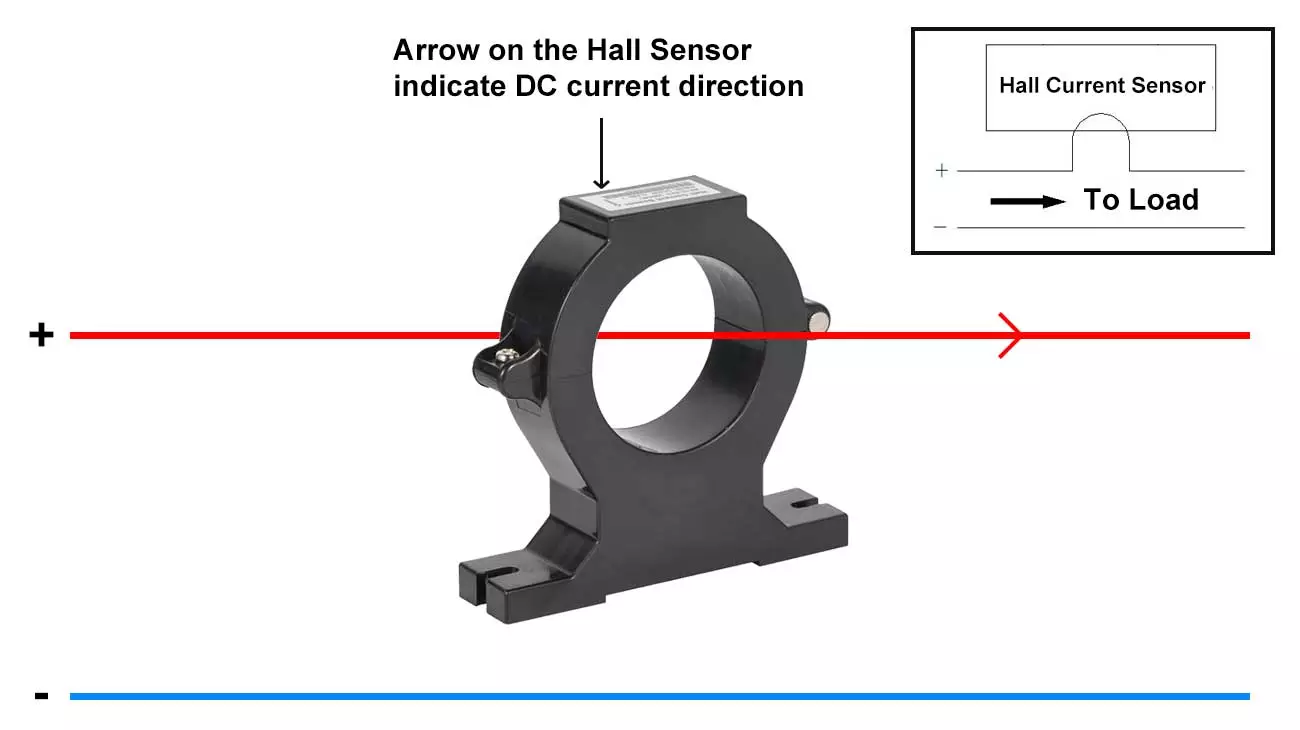

Clamp-on (Split-core) Installation on Measuring DC Cable


Wiring of Auxiliary Power Supply Input&Transduced Signal Output


Specifications of AHKC-EKC Split Core Hall Effect Current Sensor

1. Main Parameters

ParameterDescription&Value
Rated Input0～±(500-1500)A DC or 0~(50~1000)A AC
Rated Output±5Vdc/±4Vdc
AccuracyClass 1.0
Power Supply±15Vdc (allow ±20% fluctuation%)
Consumption≤0.5W
Zero Offset Voltage±20mV
Offset Voltage Drift≤±1.0mV/℃
Linearity≤0.2%FS
Response Time≤5us
Bandwidth0~20kHz
Isolation Voltage3.5kV/50Hz/1min


2. Environment

ConditionDescription&Value
Temperature

Operating Temperature: -40℃～+85℃;  Storage Temperature: -40°C ~+85°C

Humidity

≤95%RH,no condensation,without corrosive gas

Altitude

≤ 2000m
