ACR10R-DXTE Series 1-Phase Solar Inverter Energy Meter with CT

Name: ACR10R-DXTE Series 1-Phase Solar Inverter Energy Meter with CT
Brand: Acrel Co.,Ltd.

Features Specifications Applications

Features of ACR10R-DXTE Series 1-Phase Solar Inverter Energy Meter with CT


Used for distributed Solar PV

●Reflux Monitoring

● Harmonic Monitoring

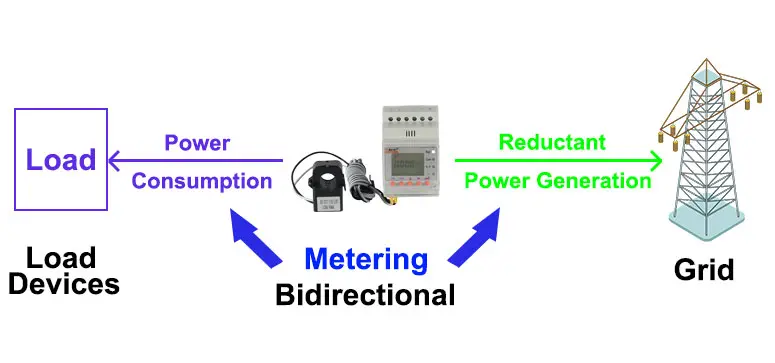

Bidirectional Metering

● Active Energy Metering

● Reactive Energy Metering

RS485 Communication

● MODBUS-RTU Protocol

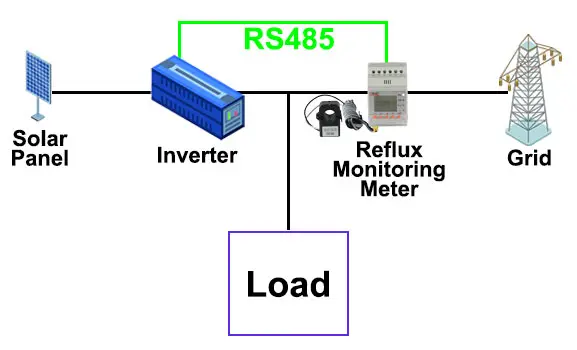

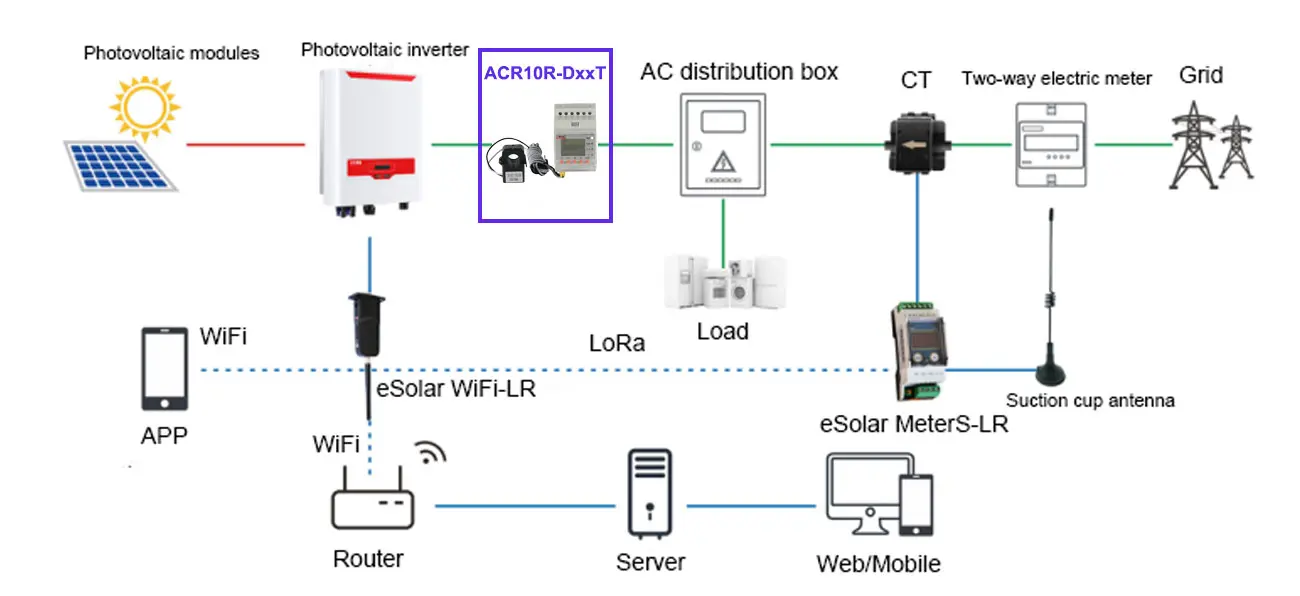

● Communicate with Inverter to realize anti-reflux Function

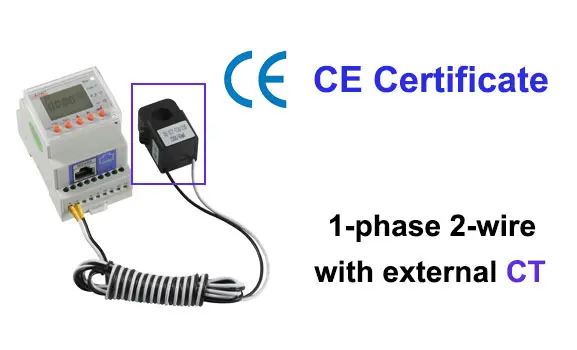

Single-phase Two-Wire Connection

● Paired with external split core CT

● Rated Voltage: AC 100V, 400V

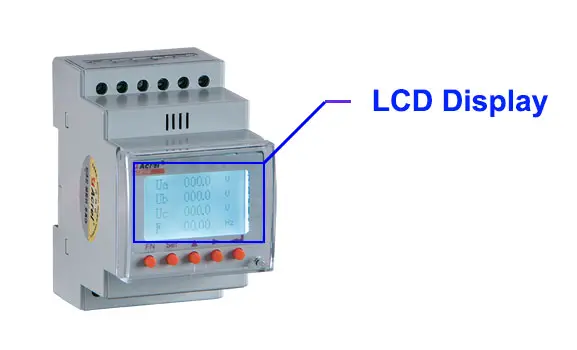

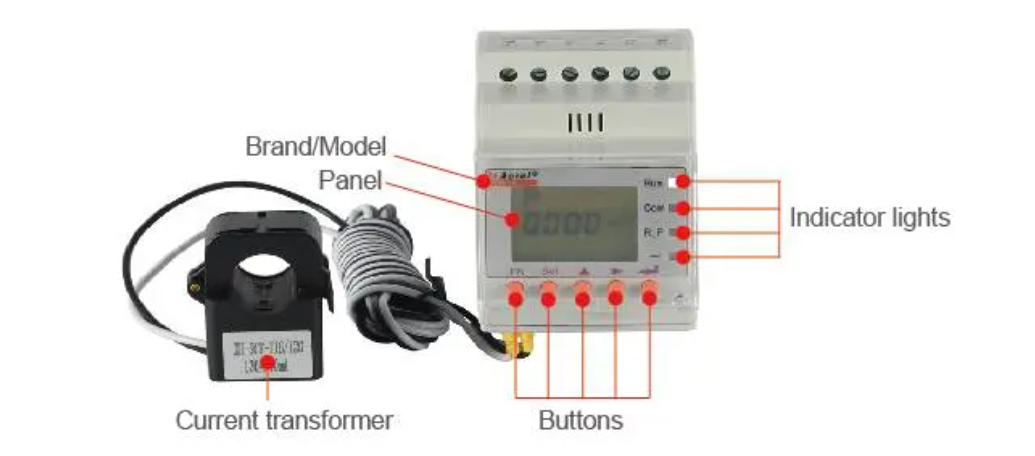

LCD Display

● Parameter Display

● Programming Interface

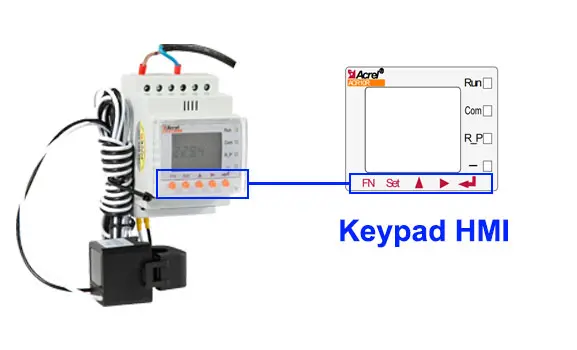

Keypads HMI for Programming

● Parameter Display Setting

● Communication(address, baud rate and etc.)

Technical parameters			Indicators
Input		Grid	Single-phase
		Frequency	45～65Hz
		Voltage	Rated voltage: AC 100V, 400V
			Overload: 1.2 times the rated voltage(continuous); 2 times the rated voltage lasting for 1 second
			Power consumption: less then 0.2VA
		Current	Rated current: 10A，20A，40A，80A，120A，200A etc. (for details see product specifications)
			Overload: 1.2 times the rated current(continuous);10 times the rated current lasting for 1 second
			Power consumption: less then 0.2VA
Output		Communication	RS485 interface, Modbus-RTU
		Display	LCD
Measurement precision			Voltage: 0.2 level, current, power Active energy: 0.5 level,0.01Hz frequency, Reactive energy: 1 level
Power supply			AC85～265V or DC100～350V; power consumption ≤10VA
Safety	Power frequency withstand voltage		AC2kV 1 min between power supply // current input//voltage input and communication AC2kV 1 min between each pair of combinations among power supply, urrent input and voltage input.
	Insulating resistor		Input,output terminal to housing >100MΩ
Environment			Working temperature: -10℃～+55℃;storage temperature: -20℃～+70℃ Relative humidity:5%～95%，non-condensing; altitude:≤2500m
